Econoride Rolling Lobe Air Spring W017038808 9069 64274

$107.95

SKU:
29920
Availability:
Ships out in 1-3 Business Days
Shipping:
Calculated at Checkout

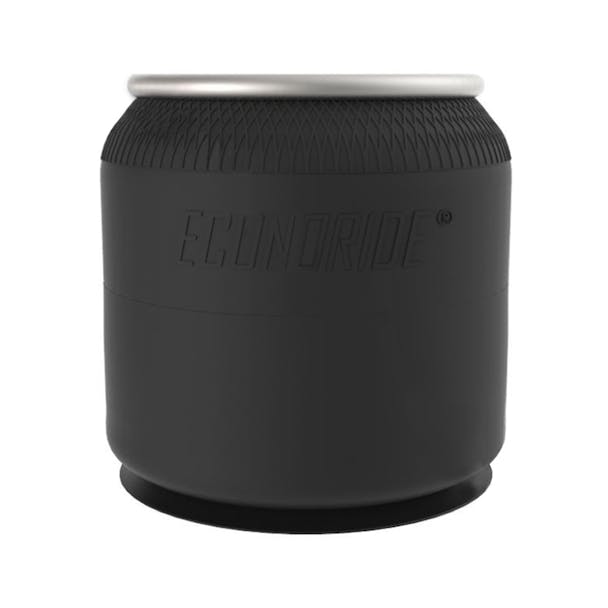

  • Econoride Rolling Lobe Air Spring W017038808 9069 64274

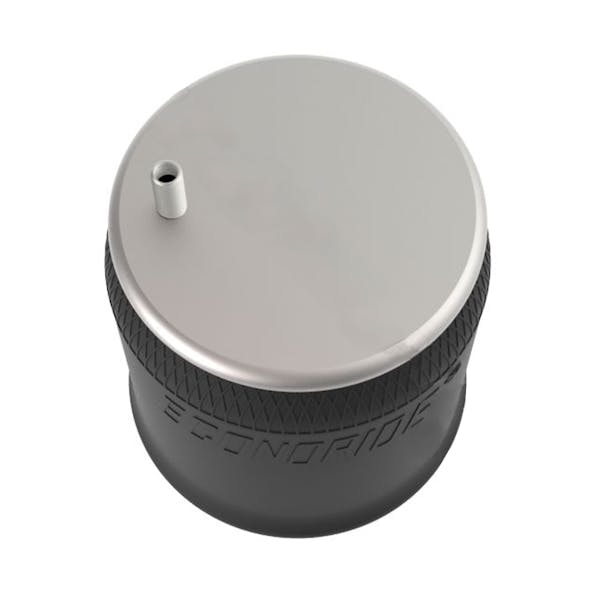

  • Econoride Rolling Lobe Air Spring W017038808 9069 64274 - Top
  • Econoride Rolling Lobe Air Spring W017038808 9069 64274 - Under
  • Econoride Rolling Lobe Air Spring W017038808 9069 64274 - Diagram
Frequently bought together:
  • Description


    Econoride Rolling Lobe Air Spring W017038808 9069 64274

    *Please Verify OEM Number Before Purchase

    • Heavy Duty Rolling Lobe Air Spring
    • Fits Various Applications
    • Direct Aftermarket Replacement For OEM #s:
      • Contitech 64274
      • Firestone 9069, W017038808, W01-703-8808, W017038923, W01-703-8923
      • Goodyear 1R12069, 1R12-069, 1R12669, 1R12-669, 1R12-676
    • Automann Bellows#: 1DK23I
    • Firestone Bellows#: 1T15M-4
    • Goodyear Bellows#: 566-24-3-038
    • Contitech Bellows#: 9 10-13.5
    • Triangle Bellows#: 6362
    • Load (Lbs) @80 PSI: 5700
    • Load (Lbs) @100 PSI: 7200
    • Natural Frequency (CPM): 76
    • Design Height: 11"
    • Bottom Plate Type: Plastic
    • Top Plate Stud Quantity: 3
    • Top Plate Diameter (A): 9.00"
    • Top Plate C to C Diameter (B): 6.20"
    • Bottom Plate Hole/Stud Quantity: 1
    • Bottom Plate Diameter (C): 9.53"
    • Bottom Plate C To C Diameter: N/A
    • Bumper: Yes
    • Bracket: N/A
    • Minimum Height: 7.5"
    • Maximum Height: 18.8"
    • Maximum Diameter: 12.6"
    • Sold Individually
    • Quality Made Product

    This Rolling Lobe Air Spring delivers ride comfort, especially when driving through uneven and rugged roads. Made of quality components for high performance, durability, and reliability. Assured to be free of defects and a long-lasting service life.

    Any mention of OEM names or OEM product ID numbers/descriptions/model numbers is intended for identification purposes only and does not indicate that it is an OEM part.

    If you should need additional Truck Parts and Accessories, please don't hesitate to call our toll-free number 1-888-888-7990

  • Warranty Information

    Vendor's General Warranty Policy

    The vendor warrants all new products against defective material or workmanship for (1) year OR (100,000) miles from the date of sale, whichever comes first. This warranty does not apply to conditions and damages resulting from misuse, abnormal or nonstandard applications, negligence, alterations, accidents, improper installation or any form of maintenance.

    The vendor will, at its sole option, repair or replace those parts which are found to be defective in either material or workmanship. Any notice of defect in materials or workmanship must be provided within (30) days of the date of purchase. The vendor is not liable for incidental damages or any costs due to labor associated with the installation or removal of the defective product.

    Except as set forth herein, and except as to title, it is expressly agreed that there is no warranty, merchantibility or claims of fitness for a particular purpose, nor other warranty, expressed, implied or statutory, nor any affirmation of fact, or promises by the vendor and its distributors with reference to the goods which extend beyond the specifications. No person is authorized to change or add to any of the vendor's and its distributors' obligations. In no event shall the vendor and its distributors be liable for anticipated profits or for incidental or consequential damages.
