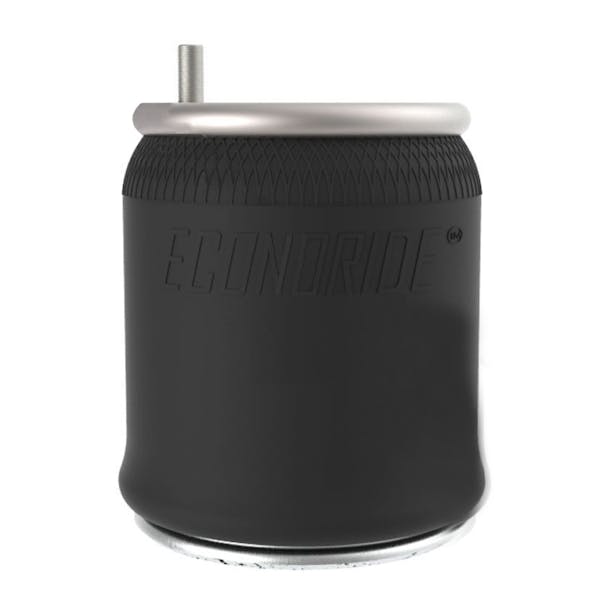

Econoride Rolling Lobe Air Spring 161034 9270 64287

$129.95

Description
Warranty Information
Reviews
Questions & Answers

Description

Econoride Rolling Lobe Air Spring 161034 9270 64287

*Please Verify OEM Number Before Purchase

Heavy Duty Rolling Lobe Air Spring
Fits Various Applications
Direct Aftermarket Replacement For OEM #s:

Contitech 161034, 64287, 9 10-13.5 S 433,
Firestone 9270, W013589270, W01-358-9270
Goodyear 1R13119, 1R13-119

Automann Bellows#: 1DK23I
Firestone Bellows#: 1T15VM-4.0, 1T15VP-4.0
Goodyear Bellows#: 566-26-3-053, 566-26-3-036
Contitech Bellows#: 9 10-13.5
Triangle Bellows#: 6385
Load (Lbs) @80 PSI: 6300
Load (Lbs) @100 PSI: 7900
Natural Frequency (CPM): 89
Design Height: 9"
Bottom Plate Type: Steel
Top Plate Hole/Stud Quantity: 1
Top Plate Diameter (A): 9.00"
Top Plate C to C Diameter (B): N/A
Bottom Plate Stud Quantity: 4
Bottom Plate Diameter (C): 9.47"
Bottom Plate C To C Diameter: 5.66"
Bottom Part #: BS09758
Bumper: Yes
Bracket: N/A
Minimum Height: 5.4"
Maximum Height: 16.8"
Maximum Diameter: 12.6"
Sold Individually
Quality Made Product

This Rolling Lobe Air Spring delivers ride comfort, especially when driving through uneven and rugged roads. Made of quality components for high performance, durability, and reliability. Assured to be free of defects and a long-lasting service life.

Any mention of OEM names or OEM product ID numbers/descriptions/model numbers is intended for identification purposes only and does not indicate that it is an OEM part.
