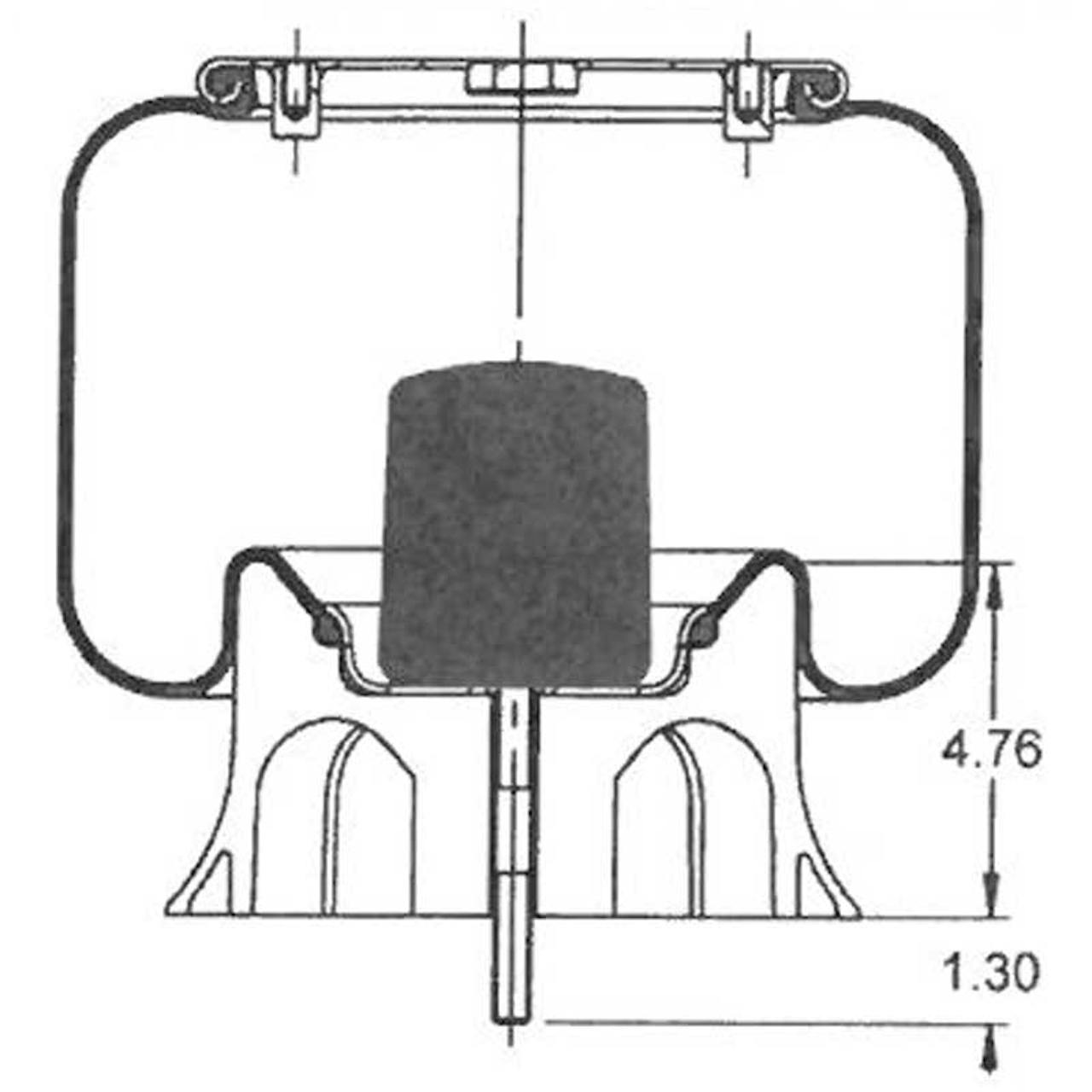

  • Peterbilt Rolling Lobe Air Spring W017038808 W017038923 1R12069 - Dimensions View
  • Peterbilt Rolling Lobe Air Spring W017038808 W017038923 1R12069 - Additional Lobe Dimensions

International Peterbilt Rolling Lobe Air Spring W017038808 W017038923 1R12069


Order Now, Pay Later with Affirm Logo Learn more
Calculated at Checkout
Ships out in 1-3 Business Days
Calculated at Checkout
Frequently bought together:



Peterbilt Rolling Lobe Air Spring W017038808 W017038923 1R12069

*Please Verify OEM Number Before Purchase

  • Cabin Air Spring
  • Fits Various International & Peterbilt Models As Well As Various Hendrickson Trailers
  • Air Spring Type: Sleeve/Cabin
  • Natural Frequency (CPM): 76
  • Load (Lbs) @80 PSI: 5700
  • Load (Lbs) @100 PSI: 7200
  • Design Height: 11"
  • Max Diameter: 12.6"
  • Max Height: 18.8"
  • Minimum Height: 7.5"
  • Top Plate Stud Quantity: 3
  • Bottom Plate Stud Quantity: 1
  • Top Plate Diameter (A): 9"
  • Bottom Plate Diameter (C): 9.53"
  • Top Plate C to C Diameter (B): 6.2"
  • Bottom Plate Type: Plastic
  • Bumper: Yes
  • Sold Individually
  • Quality Made Product

If you're looking to update your big rig with a quality made air spring, engineered to ensure safe driving regardless of the loading conditions, You've come to the right place. This Rolling Lobe Air Spring also delivers ride comfort, especially when driving on rough roads. Made of high quality components for durability, reliability, and performance. Guaranteed free of defects and a long lasting service life.

Any mention of OEM names or OEM product ID numbers/descriptions/model numbers is intended for identification purposes only and does not indicate that it is an OEM part.

If you should need additional Truck Parts and Accessories, please don't hesitate to call our toll-free number 1-888-888-7990

Contitech 64274
Firestone 9069
Firestone W017038808
Firestone W01-703-8808
Firestone W017038923
Firestone W01-703-8923
Goodyear 1R12069
Goodyear 1R12-069
Goodyear 1R12669
Goodyear 1R12-669
Goodyear 1R12-676
Hendrickson S13031
IHC 554764C1
Peterbilt 03-01649
Peterbilt 03-02038
Peterbilt 301649
Peterbilt 302038
Peterbilt 302456
Peterbilt 0302456
