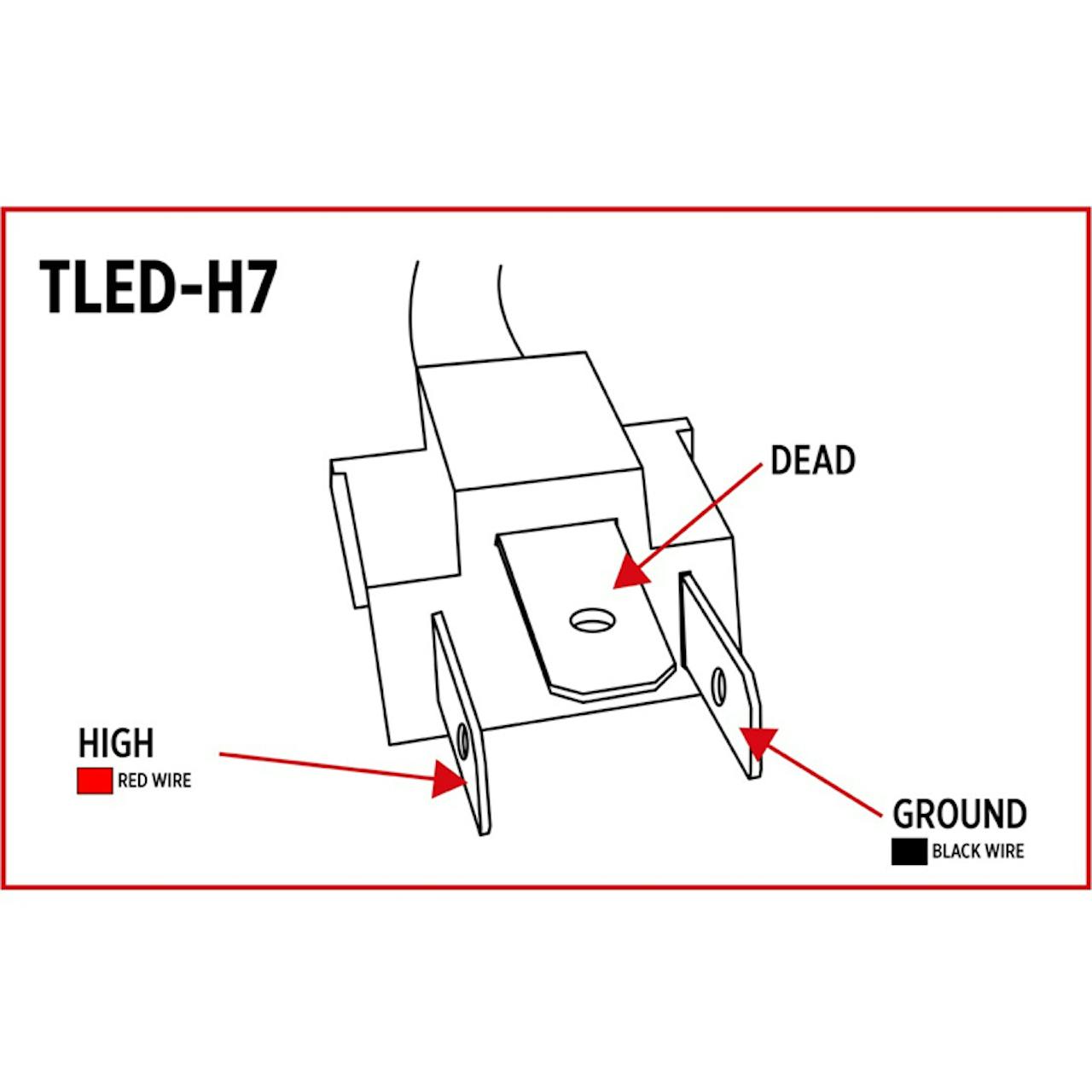

  • H7 Wiring Diagram

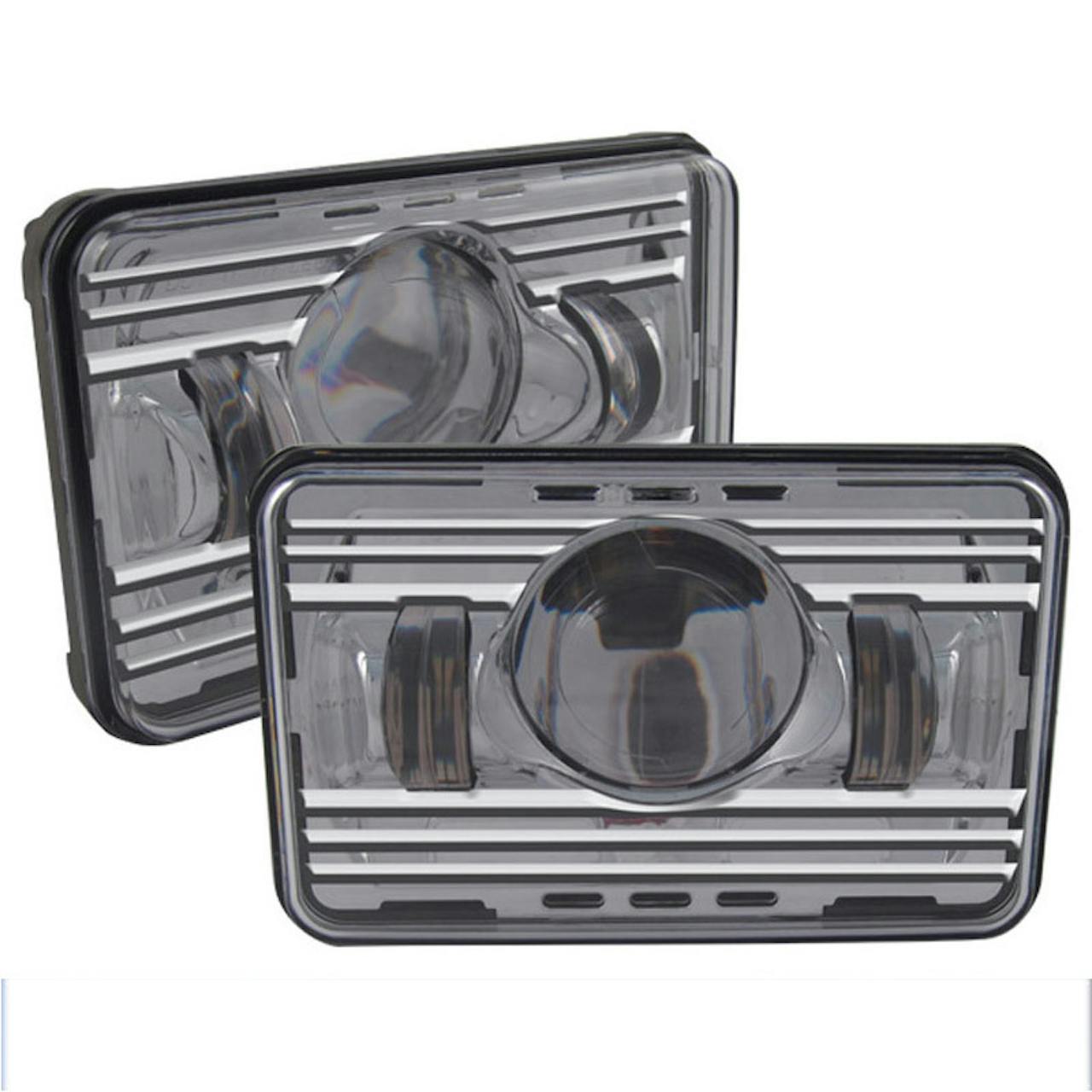

4" x 6" LED Projector Headlight High Or Low Beam

$179.95 $161.96
(You save $17.99)
Product #:
TUXTLED-H6
Shipping:
Calculated at checkout
Quantity:

Product Description


4" x 6" LED High Beam Or Low Beam Projection Headlights

  • High or Low Beam Headlight (Choose Option Above)
  • Fits Various Peterbilt, Kenworth, Freightliner, & Western Star Models
  • IP 67 Waterproof
  • 4" x 6" x 3.13"
  • 7 Cree Diodes
  • 30 Watts
  • 1.95 Amps At 12-24V
  • Low Beam Operating Voltage: 6v-24v
  • High Beam Operating Voltage: 10v-30v
  • Raw Lumens- 1300-2400 Lumens
  • Effective Lumens- 850-1150 Lumens
  • Hard Coated Polycarbonate Lens
  • Standard OEM Blade Connector
  • Completely Sealed Electronics
  • Most Luminous And Radiant In The Industry
  • Provides Better Visibility
  • Low Beam Light Up To 800ft
  • High Beam Light Up To 980ft
  • Grey Aluminum Die Cast Housing
  • 7 Year Warranty
  • DOT Approved
  • Sold Individually
  • Quality Made Product

*Light May Cause Noise Over Radio. Use Adapter Available Here As Needed

These 4" x 6" Projection headlights are the most powerful headlights in the industry with the latest and greatest Cree LED Technology! They have 2400-2800 high beam raw lumens making them the brightest LED Headlight you can buy that is DOT approved. They are completely sealed and have a hard coated polycarbonate lens to protect them from the elements.  These high power, long lasting LED's are sure to make your nights on the road a lot brighter. They also boast a very long 7 year warranty, one of the best guarantees you'll find in a headlight.

Click Here For Lighting Bug Light Safety Control Module

If you should need additional Truck Parts and Accessories, please don't hesitate to call our toll-free number 1-888-888-7990

Q&A

Click on a question to view answer, or to follow a question for updates.

Product Videos

  • Trux LED Projector Headlights
    Trux LED Proje...
    Check Out Trux Accessories Projector LED Headlights vs. Standa...

Warranty Information

Trux Warranty Policies

Products are guaranteed against defects in the manufacturing process.
Trux Accessories does not cover items that have failed due to driver error, modification and improper installation.
Trux Accessories does not warranty items that have been used in a non-standard application.
See section below for warranty breakdown by product type.

LED Lighting: 3 year warranty from date of purchase.
LED Worklamps: 3 year warranty from date of purchase.
LED Headlights (TLED-H3 / H4 / H6 / H7 / H8 / H56): 7 year warranty from date of purchase.
Super Value LED Headlights (TLED-H5 / H51 / H52): 1 year warranty from date of purchase.
LED Headlights (TLED-H53 & TLED-H48K): 3 year warranty from date of purchase.
Headlight Assemblies (Halogen Bulb Not Included): 2 year warranty from date of purchase on LED marker & projector only.
Stainless Steel Products: 1 year warranty from date of purchase.
Exhaust Products: 1 year warranty from date of purchase. against defective workmanship for 1 year from date of purchase.
