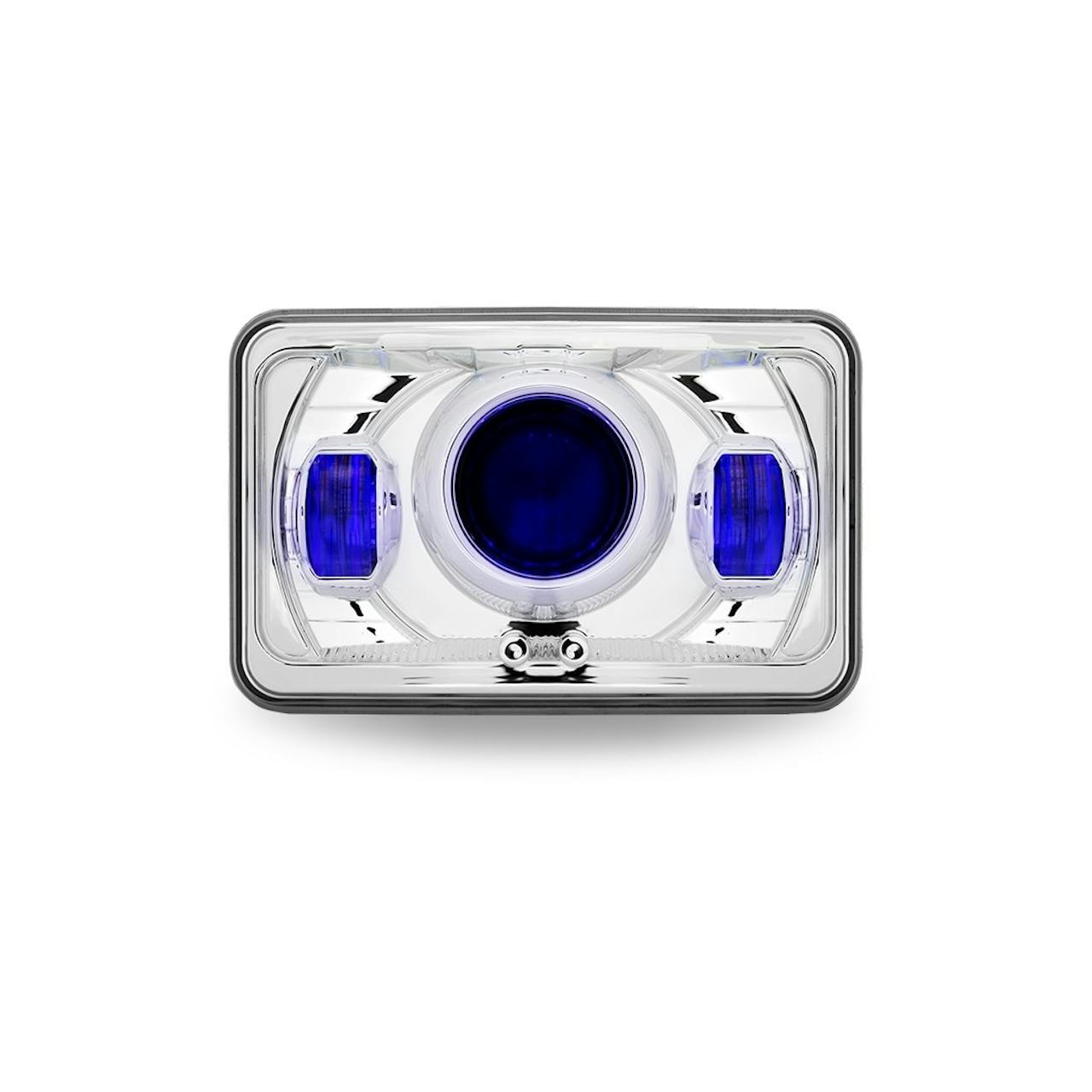

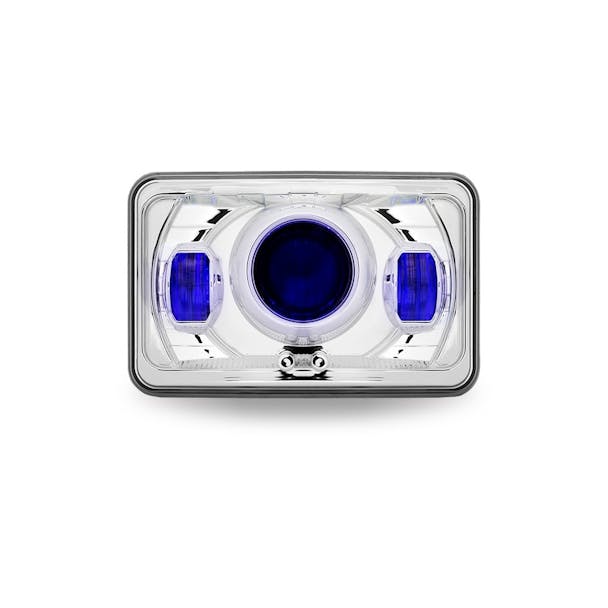

4" x 6" LED Projector Headlight With Optional Heat And Backlit Auxiliary High or Low Beam

$175.95

SKU:
37917
Condition:
New
Availability:
Some options in stock, other options ship in 1-2 weeks - Call to verify
Shipping:
Calculated at Checkout

4" x 6" LED Projector Headlight With Optional Heat And Backlit Auxiliary High or Low Beam

$175.95
Free Shipping
  • 4" x 6" LED Projector Headlight With Optional Heat And Backlit Auxiliary High or Low Beam by Trux - Default
  • 4" x 6" LED Projector Headlight With Optional Heat And Backlit Auxiliary High or Low Beam by Trux - Low Beam On
  • 4" x 6" LED Projector Headlight With Optional Heat And Backlit Auxiliary High or Low Beam by Trux - Low Beam Off
  • 4" x 6" LED Projector Headlight With Optional Heat And Backlit Auxiliary High or Low Beam by Trux - High Beam On
  • 4" x 6" LED Projector Headlight With Optional Heat And Backlit Auxiliary High or Low Beam by Trux - High Beam Off
  • 4" x 6" LED Projector Headlight With Optional Heat And Backlit Auxiliary High or Low Beam by Trux -  Low Beam Heated On
  • 4" x 6" LED Projector Headlight With Optional Heat And Backlit Auxiliary High or Low Beam by Trux - Low Beam Heated Off
  • 4" x 6" LED Projector Headlight With Optional Heat And Backlit Auxiliary High or Low Beam by Trux - High Beam Heated On
  • 4" x 6" LED Projector Headlight With Optional Heat And Backlit Auxiliary High or Low Beam by Trux - High Beam Heated Off
  • 4" x 6" LED Projector Headlight With Optional Heat And Backlit Auxiliary High or Low Beam by Trux - Back
SKU:
37917
Shipping:
Calculated at Checkout
Frequently bought together:
  • Description


    4" x 6" LED Projector Headlight With Optional Heat And Backlit Auxiliary High or Low Beam

    • 4" x 6" LED Projector Headlight
    • Compatible with Various Makes and Models
      • Standard OEM H4 Blade Connector
    • Optional "Quick Heat" Lens Technology Melts Ice and Snow Automatically (Choose Above)
    • Backlit Auxiliary Function Has An Independent Wire
    • LED Projector Technology for Greater Visibility
    • Low Beam:
      • LED Power: 11 Watts
      • Raw Lumens: 3000 Lumens
      • Effective Lumens: 1000 Lumens
      • Operating Voltage (V): 9-30 Volts (DRL Compatible)
      • Amperage: 1.1 Amps @ 12.8 Volts
    • High Beam
      • LED Power: 28 Watts
      • Raw Lumens: 5000
      • Effective Lumens: 2000
      • Operating Voltage (V): 9-30 Volts (DRL Compatible)
      • Amperage: 2.5 Amps @ 12.8 Volts
    • Lens Material: Polycarbonate
    • Automatic Heat Activation At 46.4 Degrees Fahrenheit
    • Housing Material: Aluminum Die Cast
    • Dimensions (L x W x H): 6" x 3.23" x 4"
    • Water Proof Rating: IP67 Rating
    • Meets FMVSS-108 & CMVSS-108 Standards
    • Covered by a 3-Year Warranty
    • DOT Compliant
    • Sold Individually
    • Quality Made Product

    Looking for a Light Safety Control Module (LSCM) to avoid low beam outages? Check out the Lighting Bug!

    If you should need additional truck parts and accessories, please don't hesitate to call our toll-free number:
    1-888-888-7990

  • Warranty Information

    TRUX Accessories General Warranty

    All standard LED lights and worklamps have a (3)-year warranty from date of purchase, the manufacturer will replace any LED with one or more burnt-out diodes during this guaranteed time period. This warranty does not apply to any LED lights that have been installed incorrectly or failure due to driver error. Condensation is not warrantied if all diodes are functioning properly.

    All stainless steel and exhaust products have a (1)-year warranty against defective workmanship from the date of purchase. The manufacturer does not warranty items that have been installed incorrectly, used in a "non-standard" application or failure due to driver error. Modification, (including painting,) will void the relevant warranty.

    LED Headlight warranties are determined on a case-by-case basis, please call to confirm your exact warranty if the model is not listed.

    • TLED-H3 / H4 / H6 / H7 / H8 / H56: LED Headlights; (7)-year warranty from date of purchase.
    • TLED-H53 / H48K: LED Headlights; (3)-year warranty from date of purchase.
    • TLED-H57 / H58: LED Headlights; (2)-year warranty from date of purchase on LEDs only.
    • TLED-H5 / H51 / H52: "Super Value" LED Headlights; (1)-year warranty from date of purchase.
  • Reviews
  • Questions & Answers

Description


4" x 6" LED Projector Headlight With Optional Heat And Backlit Auxiliary High or Low Beam

  • 4" x 6" LED Projector Headlight
  • Compatible with Various Makes and Models
    • Standard OEM H4 Blade Connector
  • Optional "Quick Heat" Lens Technology Melts Ice and Snow Automatically (Choose Above)
  • Backlit Auxiliary Function Has An Independent Wire
  • LED Projector Technology for Greater Visibility
  • Low Beam:
    • LED Power: 11 Watts
    • Raw Lumens: 3000 Lumens
    • Effective Lumens: 1000 Lumens
    • Operating Voltage (V): 9-30 Volts (DRL Compatible)
    • Amperage: 1.1 Amps @ 12.8 Volts
  • High Beam
    • LED Power: 28 Watts
    • Raw Lumens: 5000
    • Effective Lumens: 2000
    • Operating Voltage (V): 9-30 Volts (DRL Compatible)
    • Amperage: 2.5 Amps @ 12.8 Volts
  • Lens Material: Polycarbonate
  • Automatic Heat Activation At 46.4 Degrees Fahrenheit
  • Housing Material: Aluminum Die Cast
  • Dimensions (L x W x H): 6" x 3.23" x 4"
  • Water Proof Rating: IP67 Rating
  • Meets FMVSS-108 & CMVSS-108 Standards
  • Covered by a 3-Year Warranty
  • DOT Compliant
  • Sold Individually
  • Quality Made Product

Looking for a Light Safety Control Module (LSCM) to avoid low beam outages? Check out the Lighting Bug!

If you should need additional truck parts and accessories, please don't hesitate to call our toll-free number:
1-888-888-7990

View AllClose

Warranty Information

TRUX Accessories General Warranty

All standard LED lights and worklamps have a (3)-year warranty from date of purchase, the manufacturer will replace any LED with one or more burnt-out diodes during this guaranteed time period. This warranty does not apply to any LED lights that have been installed incorrectly or failure due to driver error. Condensation is not warrantied if all diodes are functioning properly.

All stainless steel and exhaust products have a (1)-year warranty against defective workmanship from the date of purchase. The manufacturer does not warranty items that have been installed incorrectly, used in a "non-standard" application or failure due to driver error. Modification, (including painting,) will void the relevant warranty.

LED Headlight warranties are determined on a case-by-case basis, please call to confirm your exact warranty if the model is not listed.

  • TLED-H3 / H4 / H6 / H7 / H8 / H56: LED Headlights; (7)-year warranty from date of purchase.
  • TLED-H53 / H48K: LED Headlights; (3)-year warranty from date of purchase.
  • TLED-H57 / H58: LED Headlights; (2)-year warranty from date of purchase on LEDs only.
  • TLED-H5 / H51 / H52: "Super Value" LED Headlights; (1)-year warranty from date of purchase.
