International Mack Rolling Lobe Air Spring 1R12092 S11651 S12514007 S2066

$166.95

SKU:
82540
Availability:
Ships out in 1-3 Business Days
Shipping:
Calculated at Checkout

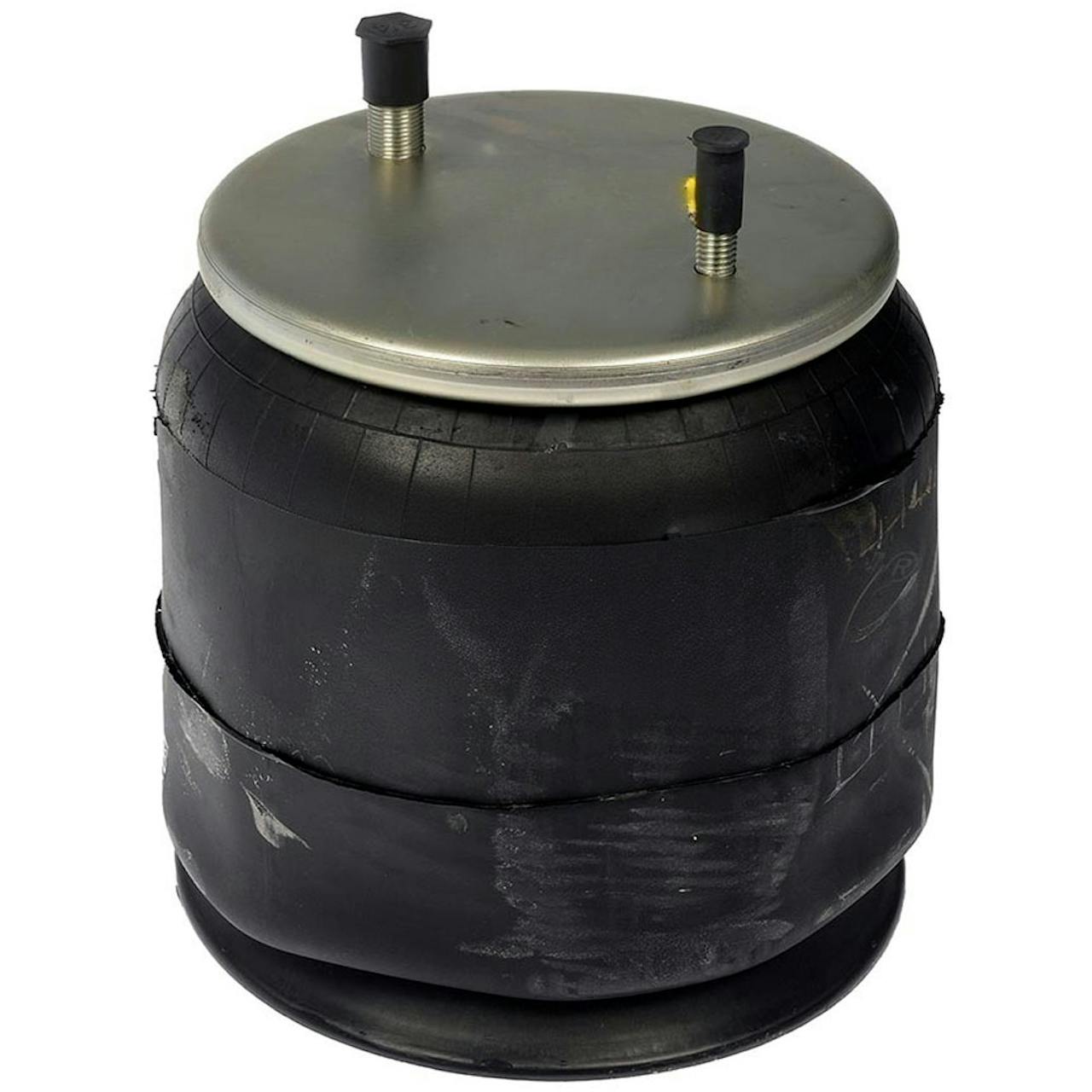

  • Hendrickson Rolling Lobe Air Spring 1R12092 S11651 S12514007 S2066 - Front View

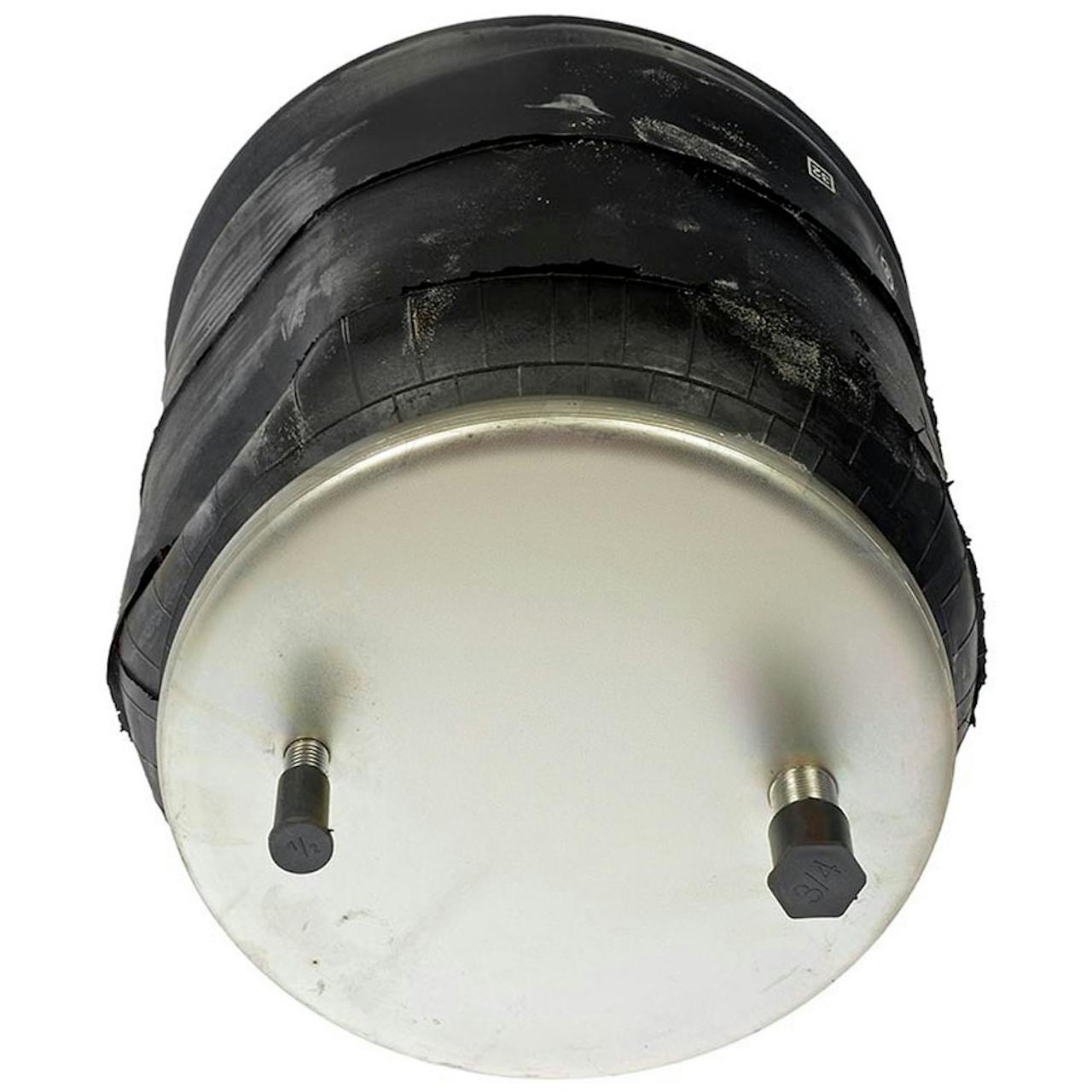

  • Hendrickson Rolling Lobe Air Spring 1R12092 S11651 S12514007 S2066 - Top View

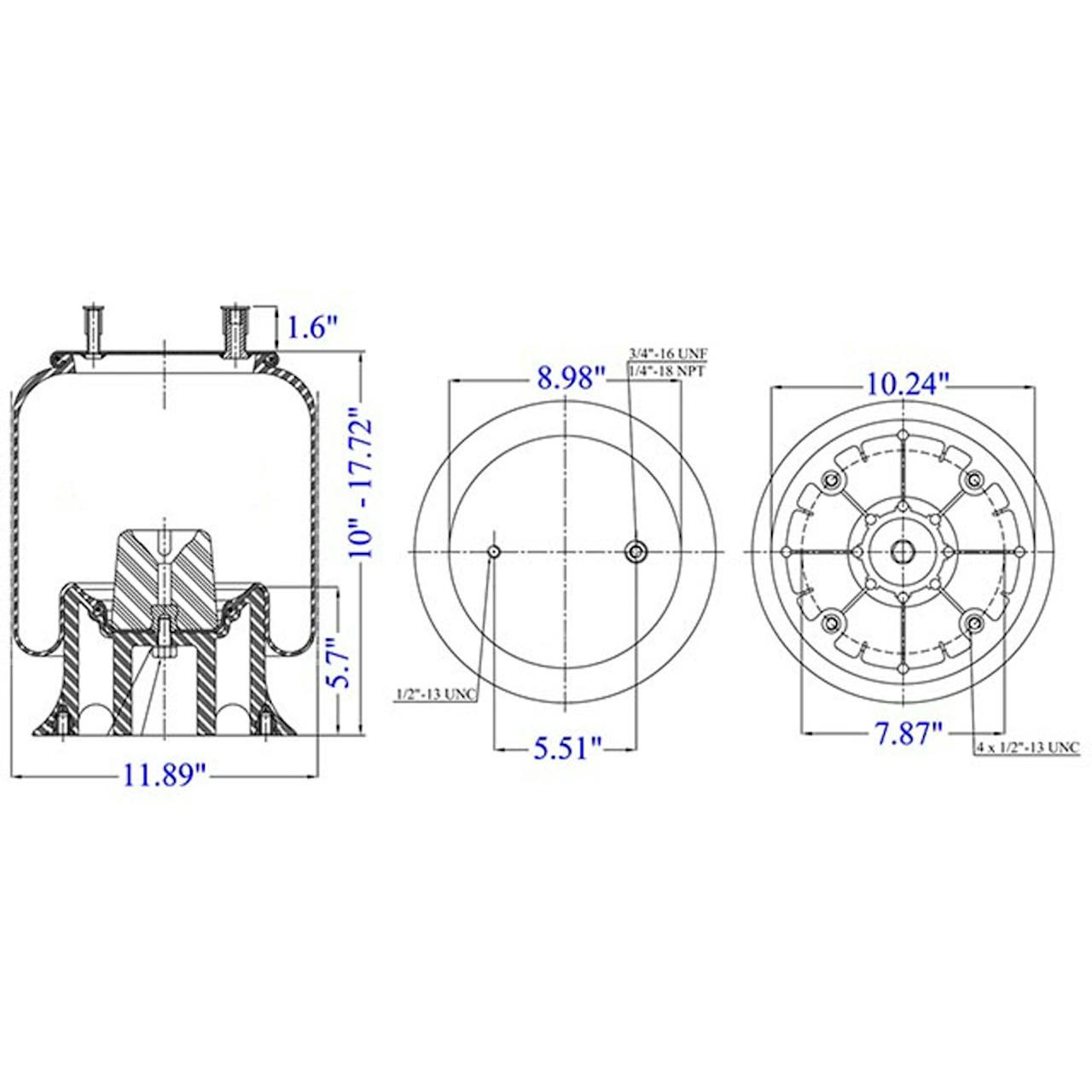

  • Hendrickson Rolling Lobe Air Spring 1R12092 S11651 S12514007 S2066 - Dimensions
Frequently bought together:
  • Description


    Hendrickson Rolling Lobe Air Spring 1R12092 S11651 S12514007 S2066

    *Please Verify OEM Number Before Purchase

    • Cabin Air Spring
    • Fits Various Ridewell, Neway, Hendrickson And Hutch Trailers
    • Air Spring Type: Sleeve/Cabin
    • Natural Frequency (CPM): 70
    • Load (Lbs) @80 PSI: 5500
    • Load (Lbs) @100 PSI: 7000
    • Design Height: 13.5"
    • Max Diameter: 12.6"
    • Max Height: 21.5"
    • Minimum Height: 7.9"
    • Top Plate Stud Quantity: 2
    • Bottom Plate Stud Quantity: 4
    • Top Plate Diameter (A): 9"
    • Bottom Plate C to C Diameter (B): 5.5"
    • Bottom Plate Diameter (C): 10.28"
    • Bottom Plate C to C Diameter (D): 7.87"
    • Bottom Plate Type: Plastic
    • Bumper: Yes
    • Sold Individually
    • Quality Made Product

    If you're looking to update your suspension with a quality made air spring, engineered to ensure safe driving regardless of the loading conditions, You've come to the right place. This Rolling Lobe Air Spring also delivers ride comfort, especially when driving on rough roads. Made of high quality components for durability, reliability, and performance. Guaranteed free of defects and a long lasting service life.

    Any mention of OEM names or OEM product ID numbers/descriptions/model numbers is intended for identification purposes only and does not indicate that it is an OEM part.

    If you should need additional Truck Parts and Accessories, please don't hesitate to call our toll-free number 1-888-888-7990

    Fitment
    ReferenceOEM
    Contitech 64269
    Firestone 9082
    Goodyear 1R12092
    Goodyear 1R12-092
    Hendrickson S11651
    Hendrickson S12514007
    Hendrickson S2066
    Hendrickson S365147
    Hutch H963001
    IHC 517096C91
    IHC 517559C9
    Mack 57QL310
    Neway 90557027
    Neway 90557033
    Reyco 1288201
    Watson&Chalin AS0011
