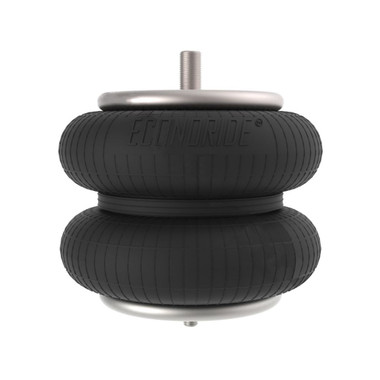

Econoride Rolling Lobe Air Spring 2B9229 W013586897 64517


Order Now, Pay Later with Affirm Logo Learn more
Calculated at Checkout
Ships out in 1-3 Business Days
Calculated at Checkout
Frequently bought together:



Econoride Rolling Lobe Air Spring 2B9229 W013586897 64517

*Please Verify OEM Number Before Purchase

  • Heavy Duty Rolling Lobe Air Spring
  • Fits Various Applications
  • Direct Aftermarket Replacement For OEM #s:
    • Contitech 64517, FD 200 19 505
    • Firestone W013586897, W01-358-6897
    • Goodyear 2B9229, 2B9-229
  • Automann Bellows#: SP2B12R
  • Firestone Bellows#: 20
  • Goodyear Bellows#: 578-92-3-202, 556-23-8-325
  • Contitech Bellows#: FD 200-19
  • Triangle Bellows#: 6325
  • Load (Lbs) @80 PSI: 2560
  • Load (Lbs) @100 PSI: 3200
  • Natural Frequency (CPM): 108
  • Design Height: 8"
  • Bottom Plate Type: N/A
  • Top Plate Hole/Stud Quantity: 1
  • Top Plate Diameter (A): 6.31"
  • Top Plate C to C Diameter (B): N/A
  • Bottom Plate Stud Quantity: 1
  • Bottom Plate Diameter (C): 6.30"
  • Bottom Plate C To C Diameter: N/A
  • Bumper: No
  • Minimum Height: 3"
  • Maximum Height: 10.5"
  • Maximum Diameter: 9.8"
  • Sold Individually
  • Quality Made Product

This Rolling Lobe Air Spring delivers ride comfort, especially when driving through uneven and rugged roads. Made of quality components for high performance, durability, and reliability. Assured to be free of defects and a long-lasting service life.

Any mention of OEM names or OEM product ID numbers/descriptions/model numbers is intended for identification purposes only and does not indicate that it is an OEM part.

If you should need additional Truck Parts and Accessories, please don't hesitate to call our toll-free number 1-888-888-7990
