Watson Triple Convoluted Air Spring 3B12315 3B12-329 AS0048

Watson Triple Convoluted Air Spring 3B12315 3B12-329 AS0048

$199.61

SKU:
82486
Availability:
Ships out in 1-3 Business Days
Shipping:
Calculated at Checkout

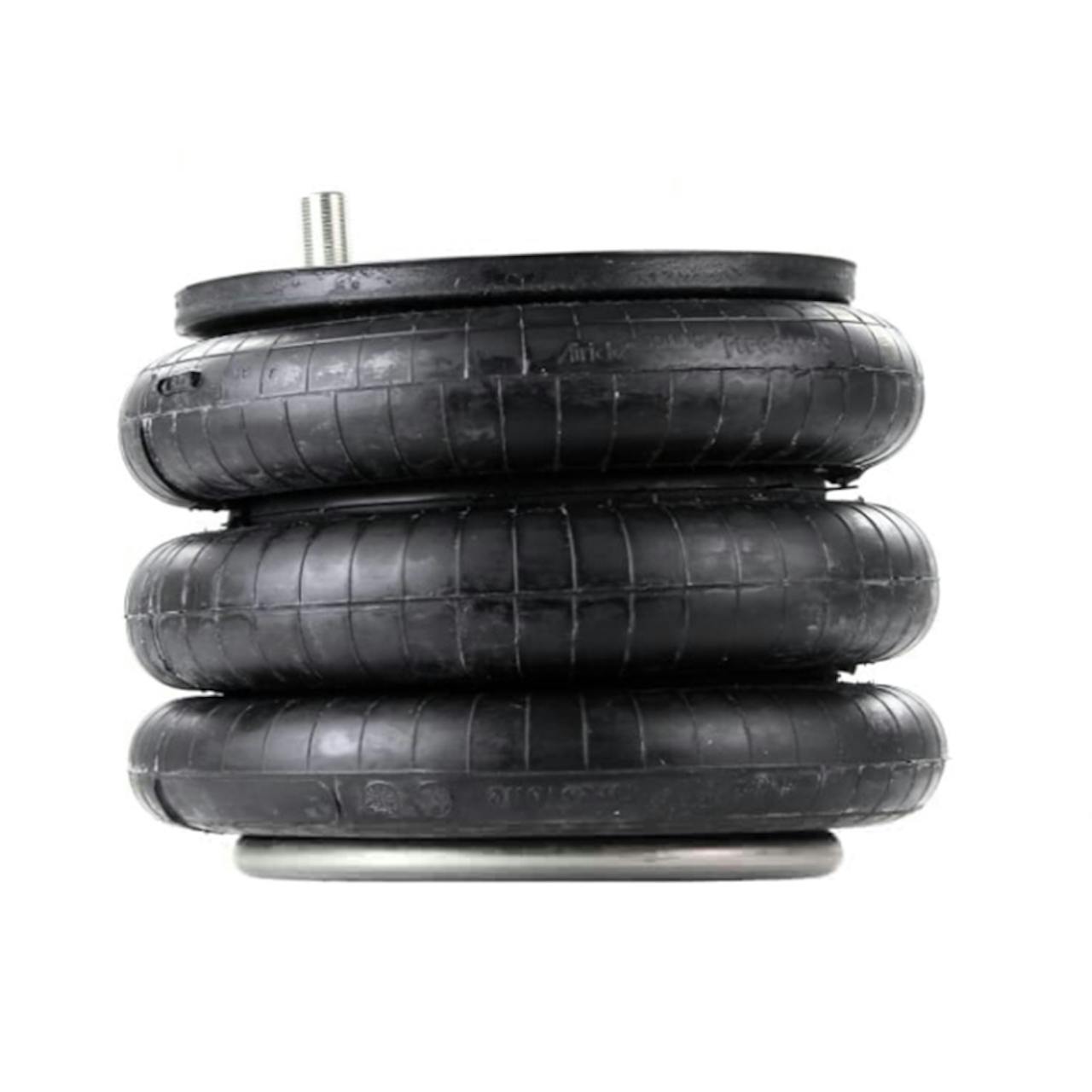

  • Watson Triple Convoluted Air Spring 3B12315 3B12-329 AS0048 - Front View

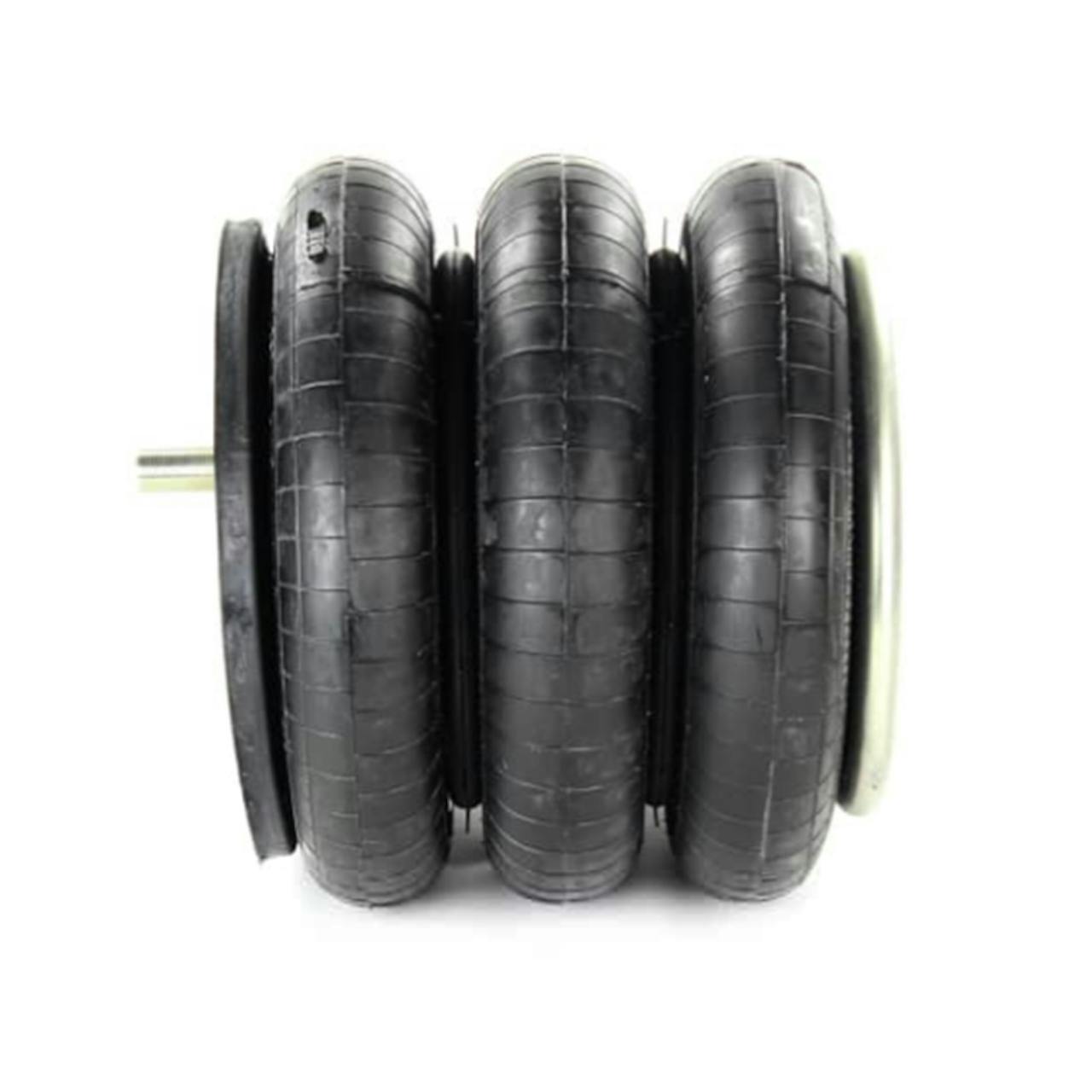

  • Watson Triple Convoluted Air Spring 3B12315 3B12-329 AS0048 - Side View

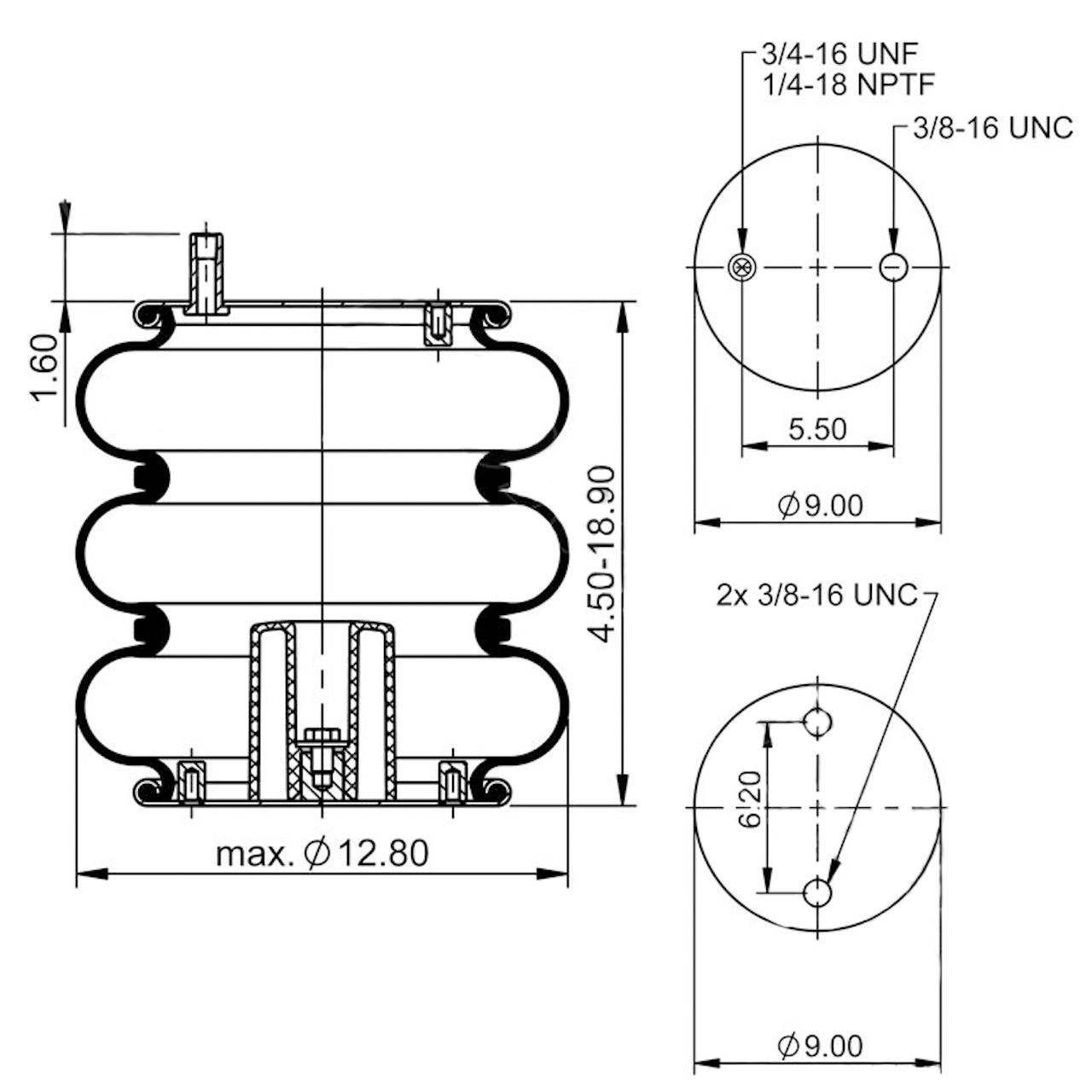

  • Watson Triple Convoluted Air Spring 3B12315 3B12-329 AS0048 - Dimensions View
Frequently bought together:
  • Description


    Watson Triple Convoluted Air Spring 3B12315 3B12-329 AS0048

    *Please Verify OEM Number Before Purchase

    • Triple Convoluted Air Spring
    • Natural Freq (CPM): 79
    • Design Height: 12"
    • Max Diameter: 12.8"
    • Minimum Height: 4.5"
    • Maximum Height: 18.9"
    • Load @80 PSI: 5400lbs
    • Load @100 PSI: 6800lbs
    • Top Plate Hole/Stud Qty: 2
    • Bottom Plate Hole Stud Qty: 2
    • Top Plate Diameter: 9"
    • Bottom Plate Diameter: 9"
    • Top Plate C to C Diameter: 6.2"
    • Bottom Plate C to C Diameter: 6.2"
    • Bottom Plate Alignment: 45°
    • Bumper: Yes
    • Sold Individually
    • Quality Made Product

    If you're looking to update your big rig with a quality made air spring, engineered to ensure safe driving regardless of the loading conditions, You've come to the right place. This Triple Convoluted Air Spring delivers ride comfort, especially when driving on rough roads. Made of high quality components for durability, reliability, and performance. Guaranteed free of defects and a long lasting service life.

    Any mention of OEM names or OEM product ID numbers/descriptions/model numbers is intended for identification purposes only and does not indicate that it is an OEM part.

    If you should need additional Truck Parts and Accessories, please don't hesitate to call our toll-free number 1-888-888-7990

    Fitment
    ReferenceOEM
    Firestone 7995
    Goodyear 3B12315
    Goodyear 3B12-315
    Goodyear 3B12329
    Goodyear 3B12-329
    Watson&Chalin AS0048
    Firestone 8032
    Goodyear 3B12319
    Goodyear 3B12-319
    Watson&Chalin AS00481F

  • Warranty Information

    Vendor's General Warranty Policy

    The vendor warrants all new products against defective material or workmanship for (1) year OR (100,000) miles from the date of sale, whichever comes first. This warranty does not apply to conditions and damages resulting from misuse, abnormal or nonstandard applications, negligence, alterations, accidents, improper installation or any form of maintenance.

    The vendor will, at its sole option, repair or replace those parts which are found to be defective in either material or workmanship. Any notice of defect in materials or workmanship must be provided within (30) days of the date of purchase. The vendor is not liable for incidental damages or any costs due to labor associated with the installation or removal of the defective product.

    Except as set forth herein, and except as to title, it is expressly agreed that there is no warranty, merchantibility or claims of fitness for a particular purpose, nor other warranty, expressed, implied or statutory, nor any affirmation of fact, or promises by the vendor and its distributors with reference to the goods which extend beyond the specifications. No person is authorized to change or add to any of the vendor's and its distributors' obligations. In no event shall the vendor and its distributors be liable for anticipated profits or for incidental or consequential damages.
