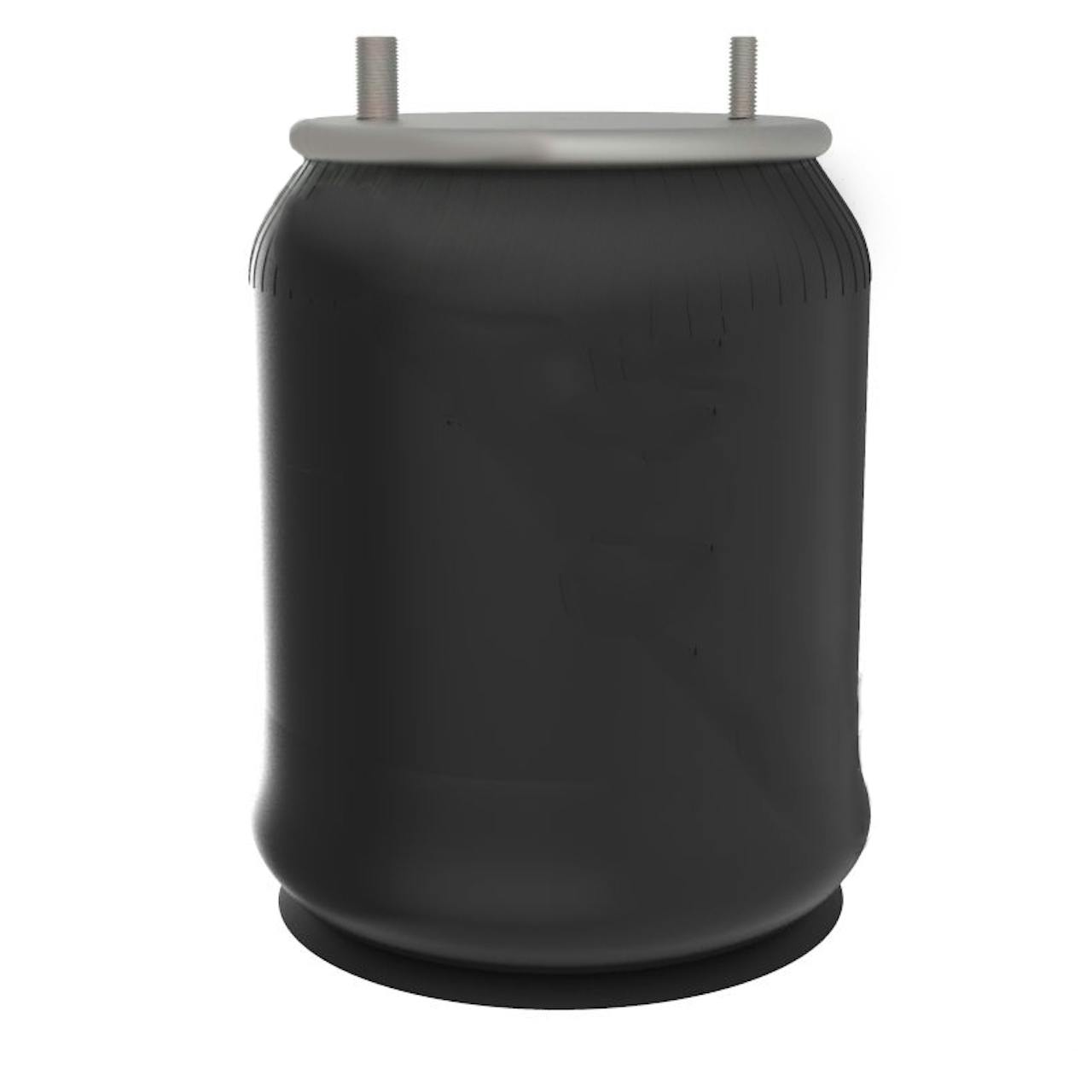

  • Watson Hendrickson Rolling Lobe Air Spring S-14249 AS0036 - Front View

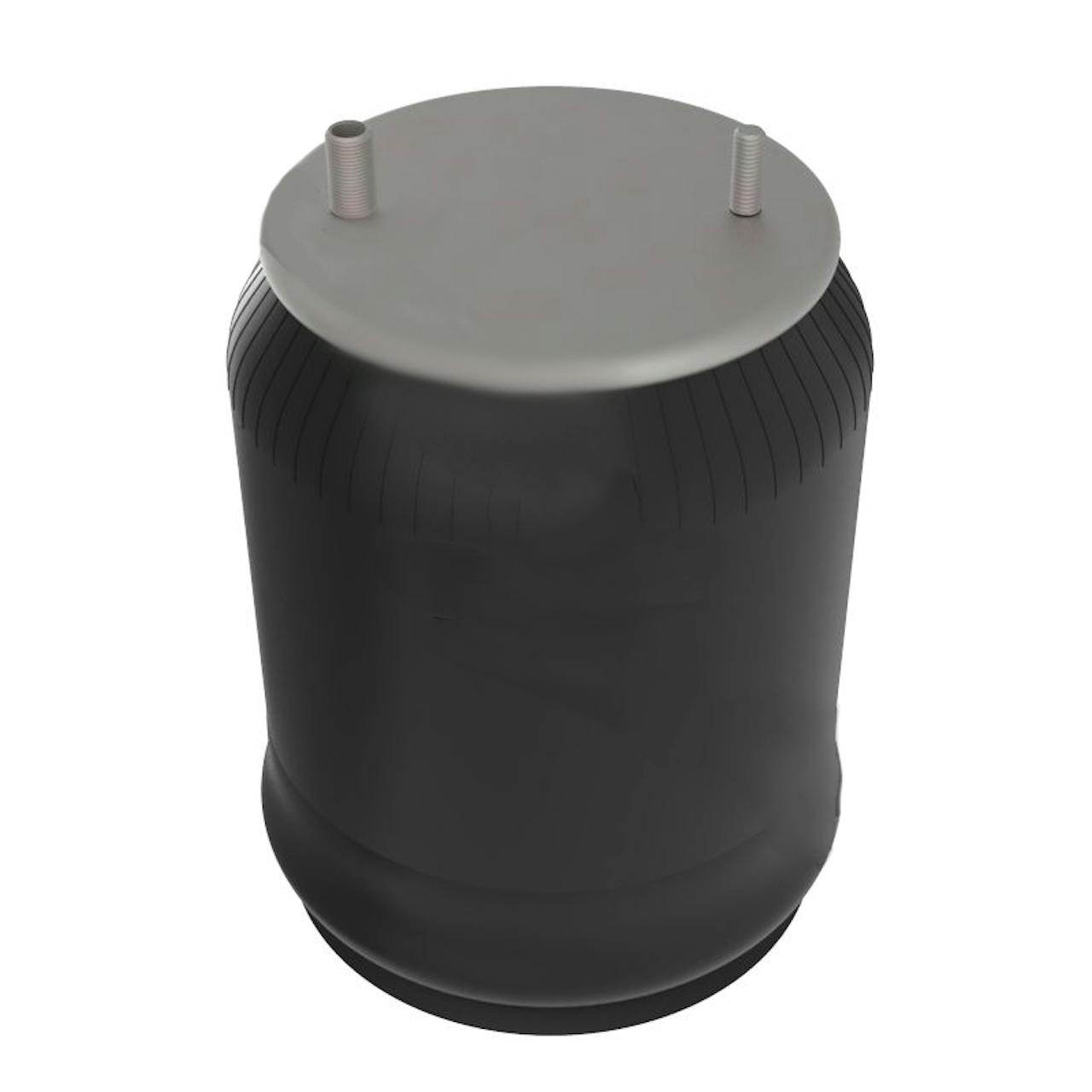

  • Watson Hendrickson Rolling Lobe Air Spring S-14249 AS0036 - Top View

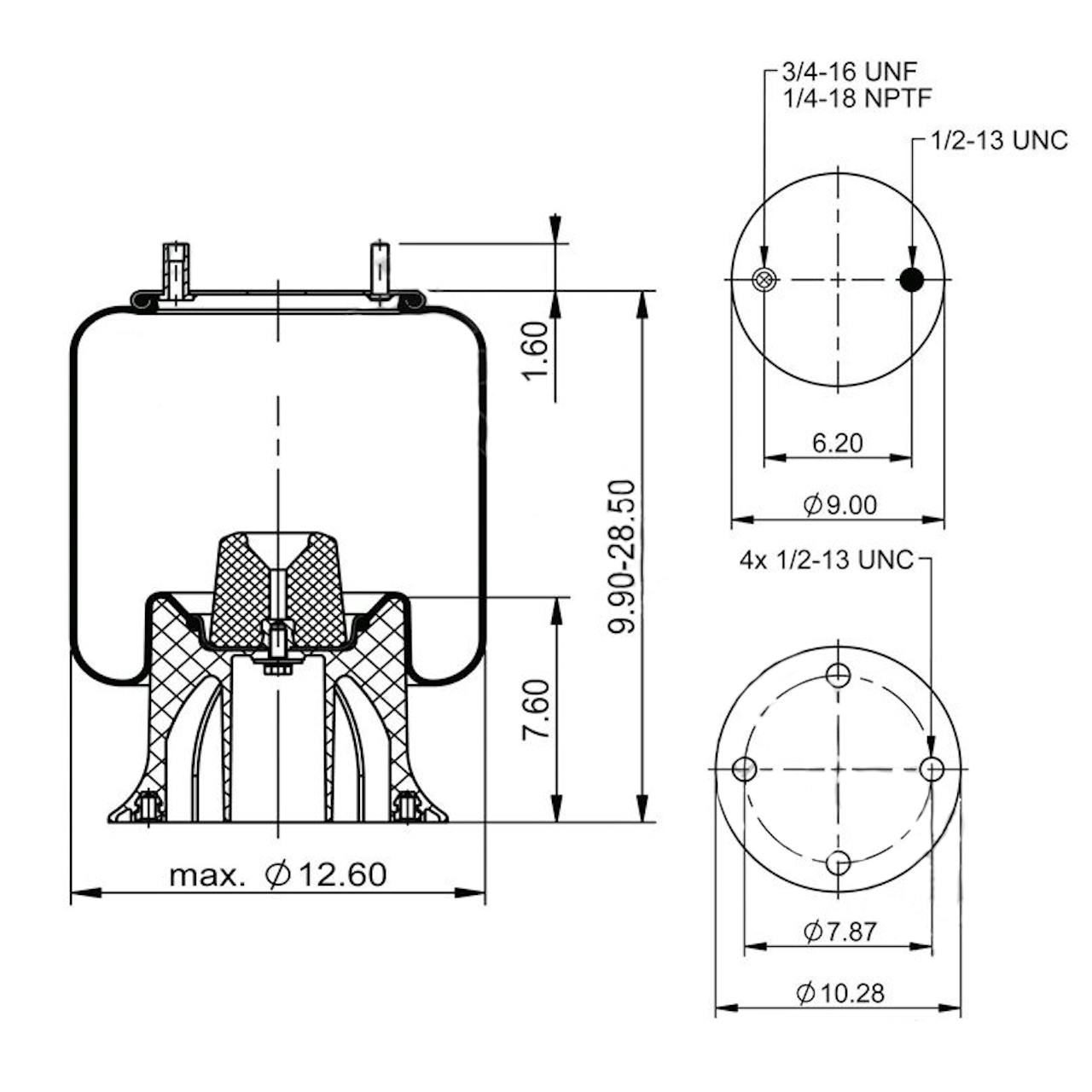

  • Watson Hendrickson Rolling Lobe Air Spring S-14249 AS0036 - Dimensions View

Watson Hendrickson Rolling Lobe Air Spring S-14249 AS0036


Order Now, Pay Later with Affirm Logo Learn more
Calculated at Checkout
Ships out in 1-3 Business Days
Calculated at Checkout
Frequently bought together:



Watson Hendrickson Rolling Lobe Air Spring S-14249 AS0036

*Please Verify OEM Number Before Purchase

  • Rolling Lobe Air Spring
  • Fits Various Watson & Chalin And Hendrickson Trailers
  • Air Spring Type: Heavy Duty/Rolling Lobe
  • Natural Frequency (CPM): 55
  • Load @80 PSI: 5600 Lbs
  • Load @100 PSI: 7100 Lbs
  • Design Height: 18"
  • Max Diameter: 12.6"
  • Max Height: 28.5"
  • Minimum Height: 9.9"
  • Top Plate Stud Quantity: 2
  • Bottom Plate Stud Quantity: 4
  • Top Plate Diameter (A): 9"
  • Top Plate C to C Diameter (B): 6.20"
  • Bottom Plate Diameter (C): 10.28"
  • Bottom Plate C to C Diameter (D): 7.87"
  • Bottom Plate Type: Plastic
  • Bumper: Yes
  • Sold Individually
  • Quality Made Product

If you're looking to update your suspension with a quality made air spring, engineered to ensure safe driving regardless of the loading conditions, You've come to the right place. This rolling lobe air spring also delivers ride comfort, especially when driving on rough roads. Made of high quality components for durability, reliability, and performance. Guaranteed free of defects and a long lasting service life.

Any mention of OEM names or OEM product ID numbers/descriptions/model numbers is intended for identification purposes only and does not indicate that it is an OEM part.

If you should need additional Truck Parts and Accessories, please don't hesitate to call our toll-free number 1-888-888-7990

Firestone 9321
Goodyear 1R12335
Goodyear 1R12-335
Hendrickson 3319
Hendrickson S14249
Hendrickson S-14249
Watson&Chalin AS0036
