Description

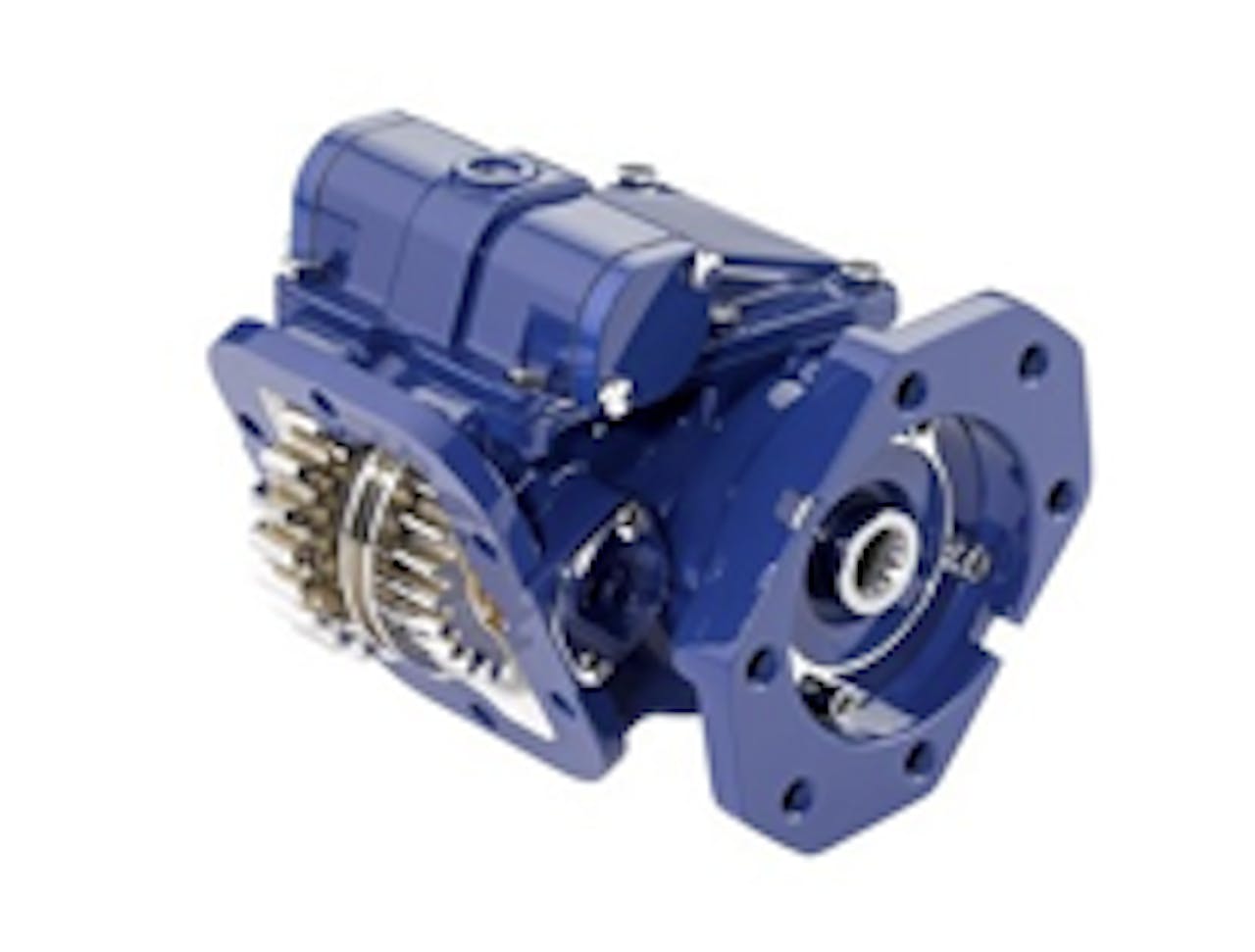

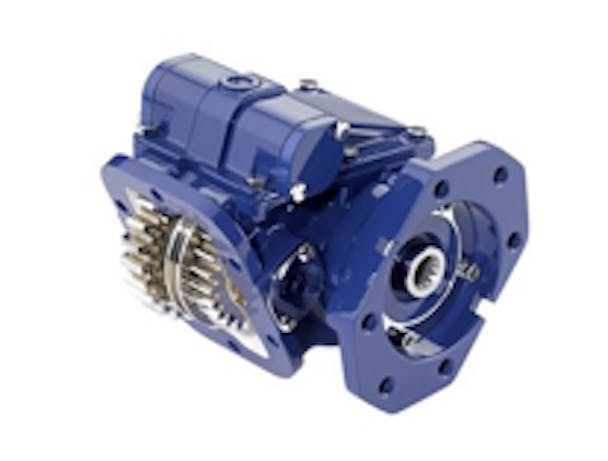

Muncie TG Series Power Take Off One of the world's most versatile PTO systems!

The TG series can be configured to meet the speed, torque, and horsepower of most applications.

Features and Benefits

Die-cast aluminum housing: Reduces weight and noise, with superior heat dissipation
6 or 8-bolt housing: For simplified installation
Modular design: Provides flexibility and ease of repair
Constant mesh input gear: Isolates transmission from engagement errors
Compact size: Minimizes mounting interference
Electric/hydraulic shift option: Eliminates the need for shift cables
Extra large shift cover opening: Allows easy access to check backlash
Rotatable hydraulic flanges: Maximizes pump clearance

Common Applications

Dump trucks
Dump trailers
Refuse vehicles
Vacuum trucks
Utility vehicles
Ejector trailers
Liquid bulk transportation
Truck mounted cranes
Recovery vehicles
Live floor trailers
Auto transports
Tank trucks

Specifications

Weight: 22 lbs.
Housing Construction: Aluminum
Speed Ratios: 10
Gear Pitches Offered: 77
Maximum Torque (intermittent): 285 lb. ft.
Output Shaft Options: 16
Rotatable Pump Mount Flange: Standard
Assembly Arrangements: 4
