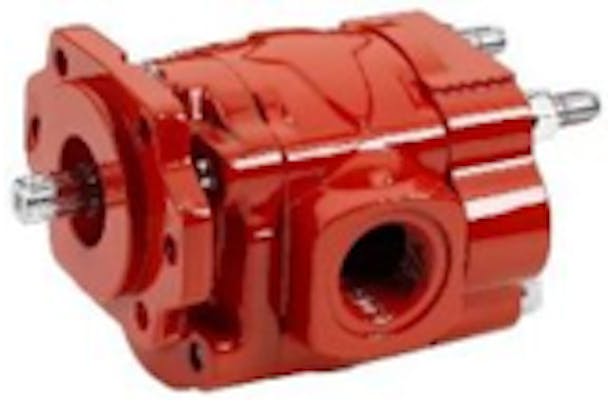

Muncie PL Series Gear Pump PL11902BPBL20

$1,099.95

SKU:
MUNPL11902BPBL20
Shipping:
Calculated at Checkout
Frequently bought together:
  • Description

    PL Series Gear Pump Designed to meet the application needs of either a pump or a motor with displacements between 14 GPM - 30 GPM at 1000 RPM

    Features and Benefits

    • 7 pump sizes (14, 16, 19, 23, 25, 27, 30 GPM @ 1000 RPM): Fit a wide variety of applications
    • Pressure to 3000 PSI: High pressure capability
    • Speeds to 3600 RPM: Application versatility
    • All cast iron construction: Long life, capable of high PSI
    • Solid, one piece shafts: Stronger
    • Versatile 4-port design: Installation flexibility
    • Heavy duty roller bearings: Long product life
    • 5 shaft types & 2 mounting flanges: Optimum flexibility
    • Built-in pressure relief valve (pump or motor): Optimum flexibility

    Common Applications

    • Snow and ice control
    • Utility line trucks
    • Refuse equipment
    • Low boys
    • Live floor trailers
    • Transfer trailers

    Specifications

    • Displacement (cu. in./rev.): 3.18 - 7.01
    • Maximum Operating Pressure (PSI): 3000
    • Input Shaft Options: 5
    • S.A.E. Mounting Flange: B
    • Other Mounting Options: Remote pad mount
    • Porting: N.P.T. or SAE (side and rear)

    Call and ask for Scott V regarding specific applications for hydraulics, pumps, and PTOs! If you should need additional Truck Parts and Accessories, please don't hesitate to call our toll-free number 1-888-888-7990
