Hendrickson Rolling Lobe Air Spring 1R13140 1R13176 S22948


Ships out in 1-3 Business Days
Calculated at Checkout

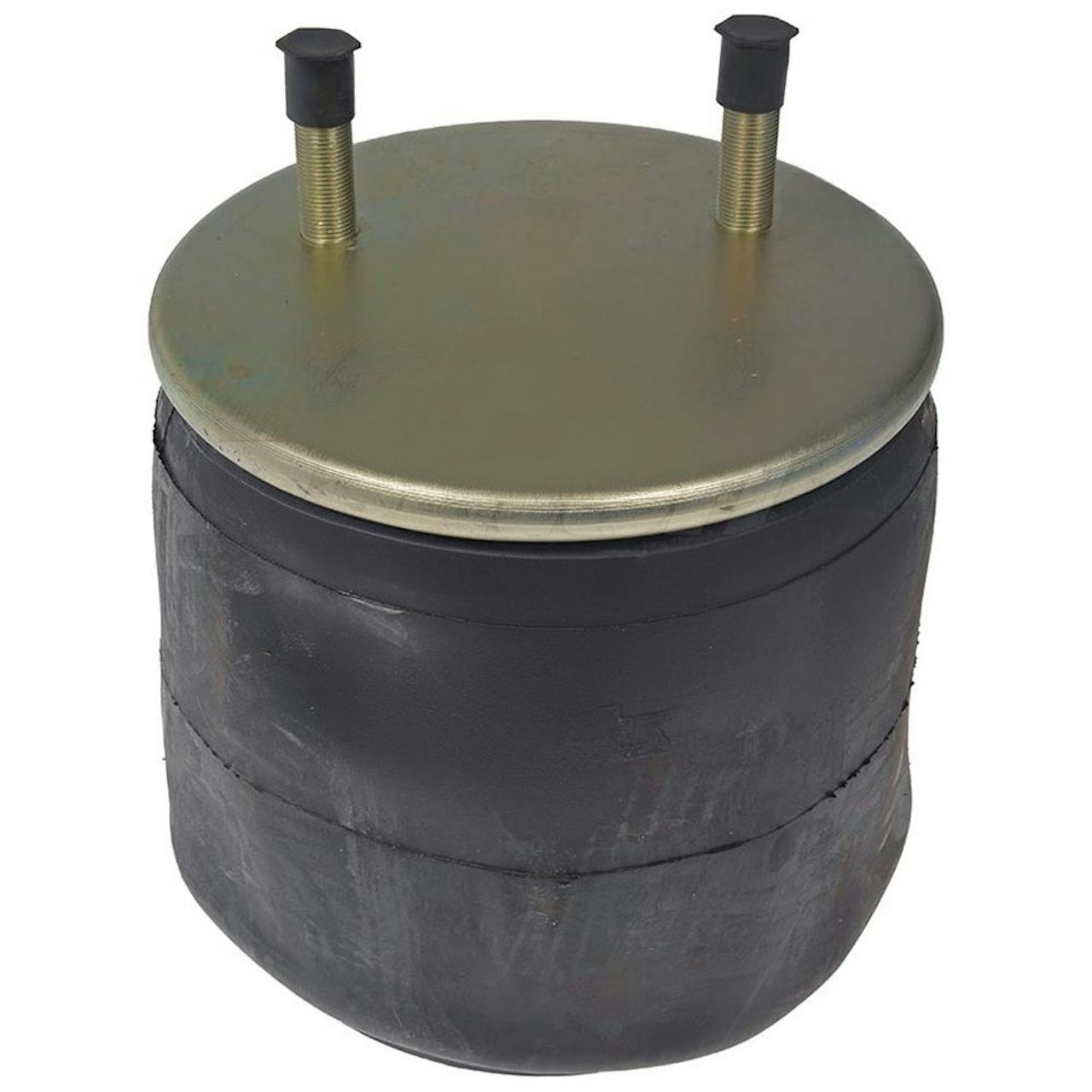

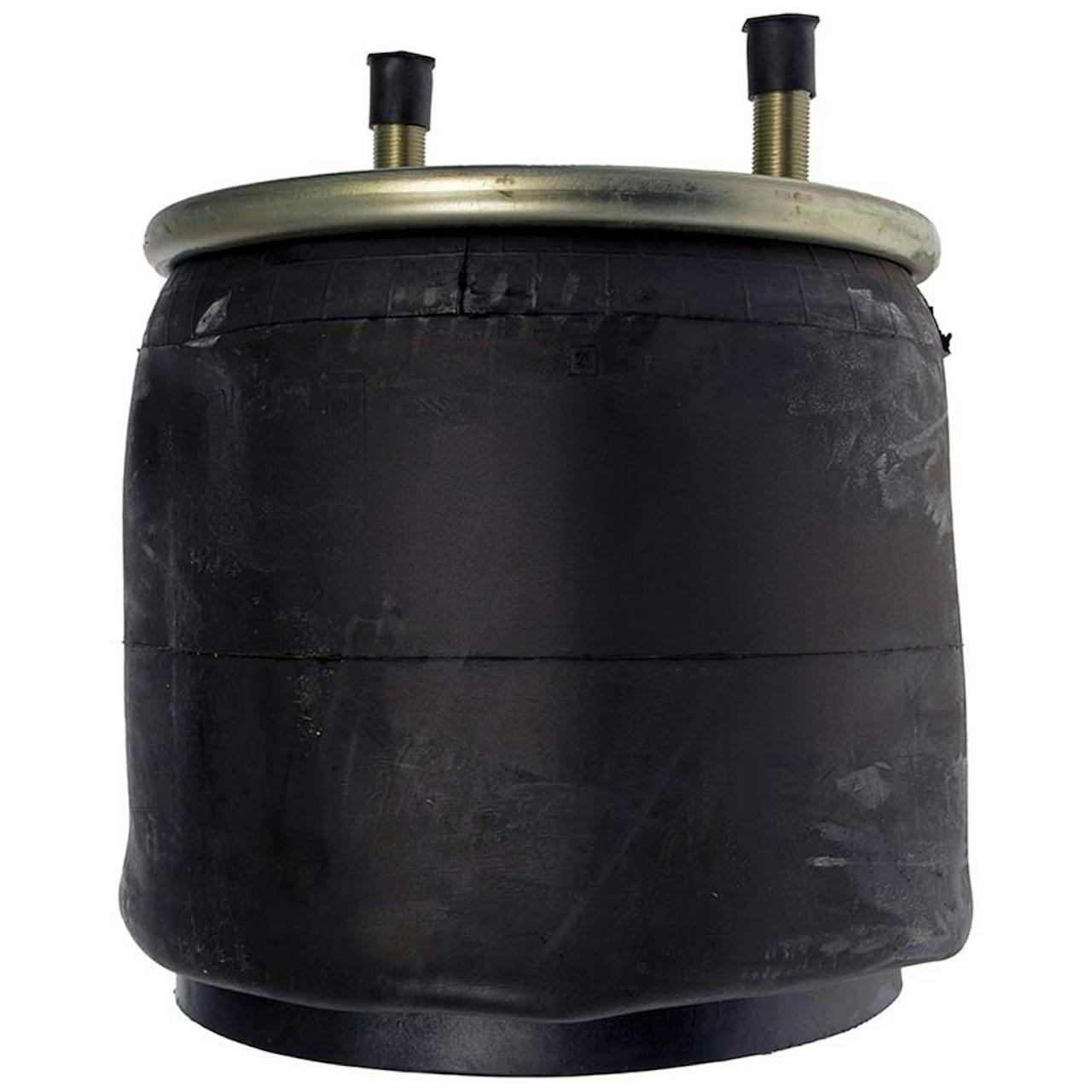

  • Hendrickson Rolling Lobe Air Spring 1R13140 1R13176 S22948 - Front View

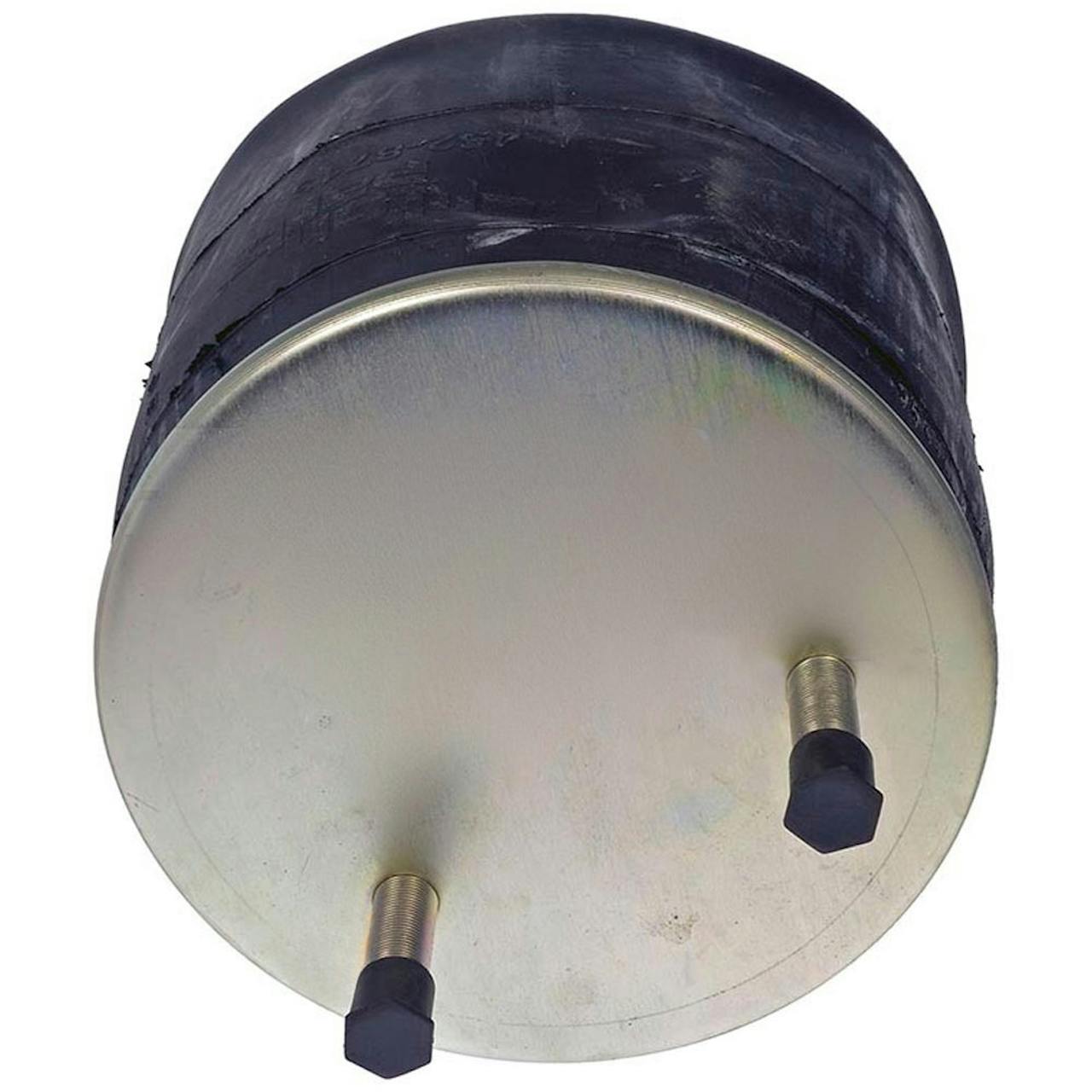

  • Hendrickson Rolling Lobe Air Spring 1R13140 1R13176 S22948 - Top View

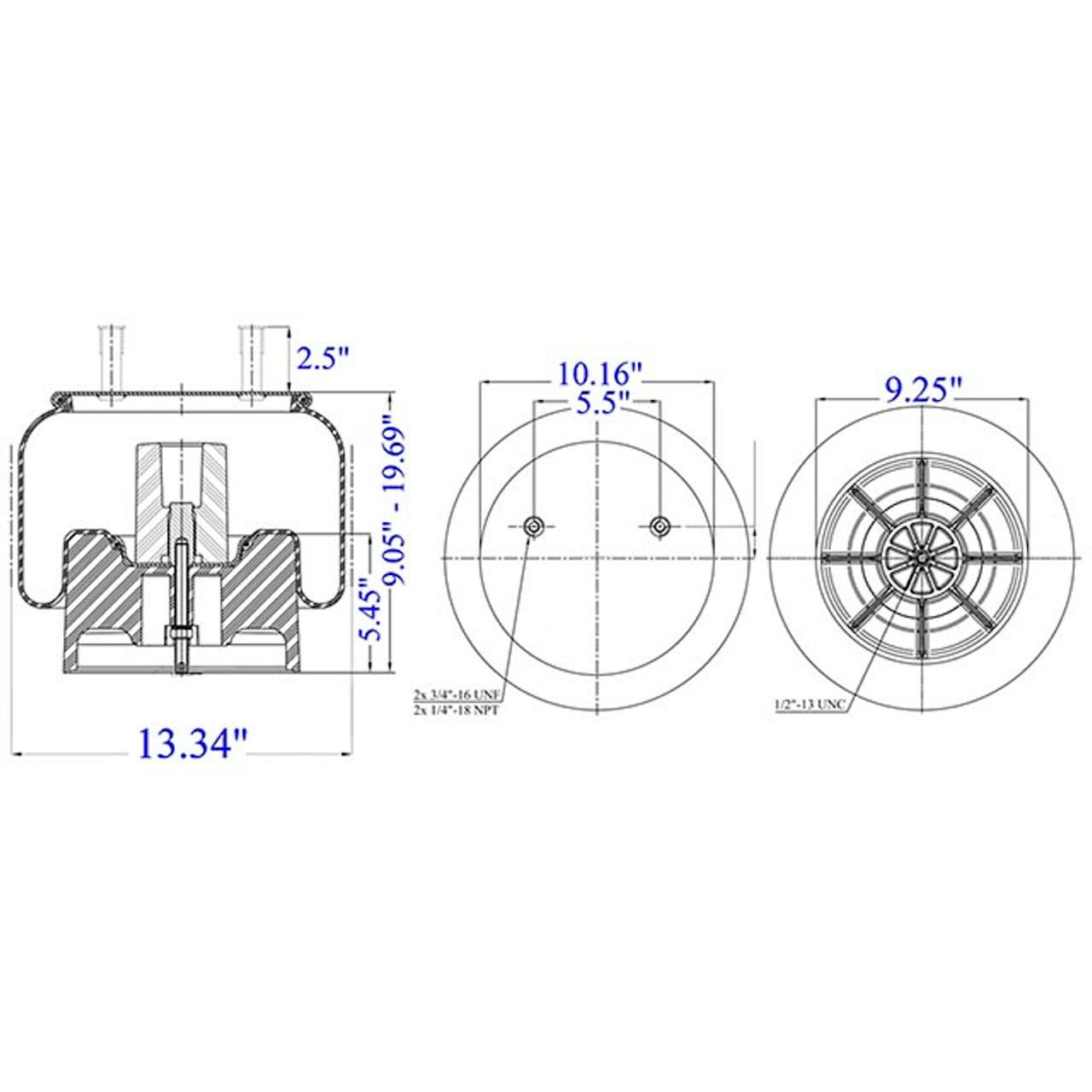

  • Hendrickson Rolling Lobe Air Spring 1R13140 1R13176 S22948 - Dimensions View
Frequently bought together:


Hendrickson Rolling Lobe Air Spring 1R13140 1R13176 S22948

*Please Verify OEM Number Before Purchase

  • Rolling Lobe Air Spring
  • Fits Various Hendrickson Trailers
  • High Quality Plastic Composite Base
  • Natural Frequency: 75
  • Design Height: 11"
  • Max Diameter: 13.7"
  • Load (Lbs) @80 PSI: 6,760
  • Load (Lbs) @100 PSI: 8,450
  • Max Height: 20.5"
  • Minimum Height: 8.5"
  • Top Plate Stud Quantity: 2
  • Bottom Plate Stud Quantity: 1
  • Top Plate Diameter (A): 10.20"
  • Bottom Plate C to C Diameter (B): 5.5"
  • Bottom Plate Diameter (C): 9.1"
  • Bumper: Yes
  • Sold Individually
  • Quality Made Product

If you're looking to update your suspension with a quality made air spring, engineered to ensure safe driving regardless of the loading conditions, You've come to the right place. This rolling lobe air spring also delivers ride comfort, especially when driving on rough roads. Made of high quality components for durability, reliability, and performance. Guaranteed free of defects and a long lasting service life.

Any mention of OEM names or OEM product ID numbers/descriptions/model numbers is intended for identification purposes only and does not indicate that it is an OEM part.

If you should need additional Truck Parts and Accessories, please don't hesitate to call our toll-free number 1-888-888-7990

Contitech 64636
Firestone 8713
Goodyear 1R13140
Goodyear 1R13-140
Goodyear 1R13176
Goodyear 1R13-176
Hendrickson S22948
