Hendrickson Double Convoluted Air Spring 2B10226 B14486 S14486


Order Now, Pay Later with Affirm Logo Learn more
Ships out in 1-3 Business Days
Calculated at Checkout
Calculated at Checkout
Frequently bought together:



Hendrickson Double Convoluted Air Spring 2B10226 B14486 S14486

*Please Verify OEM Number Before Purchase

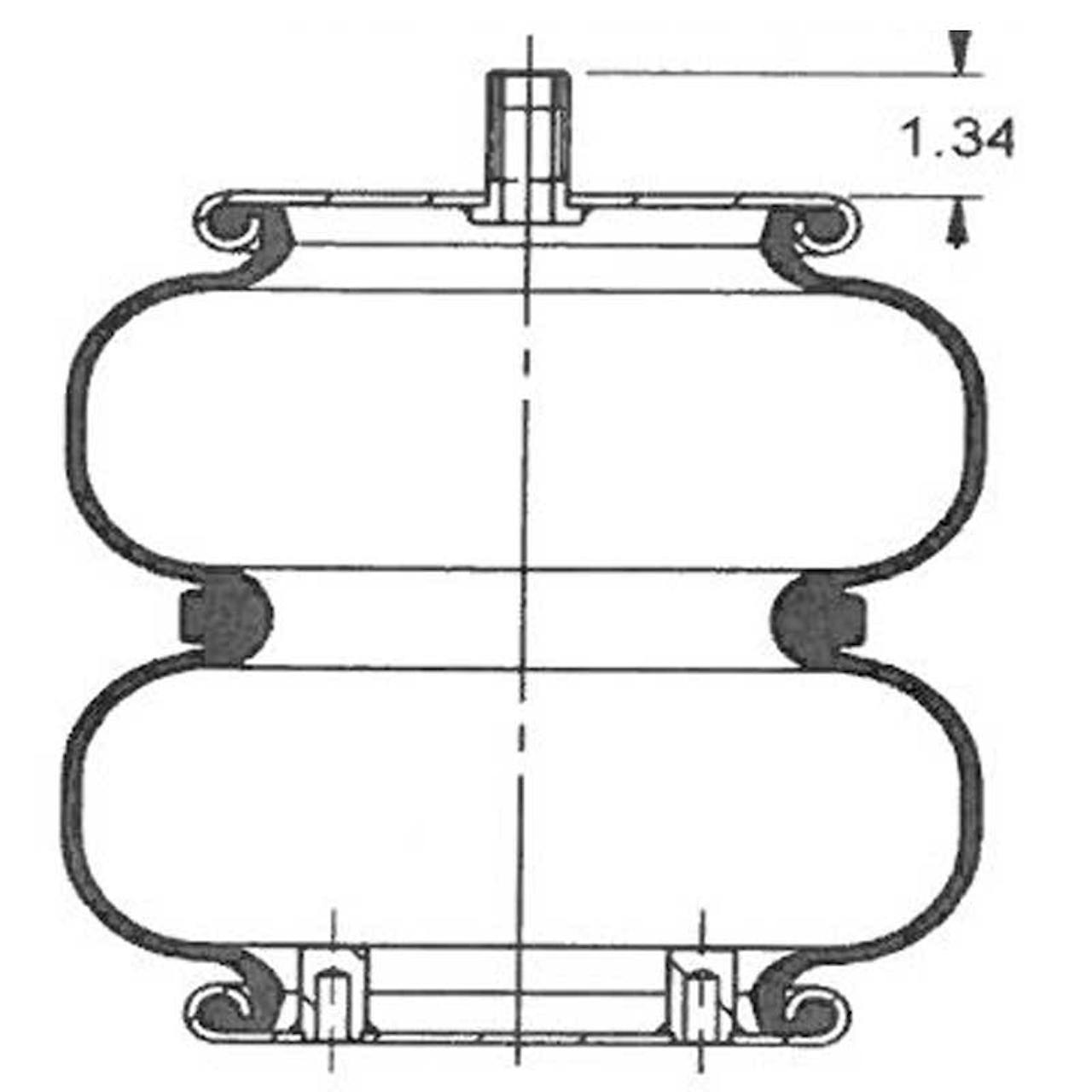

  • Double Convoluted Air Spring
  • Fits Various Hendrickson Trailers
  • Air Spring Type: Sleeve/Double Convoluted
  • Natural Frequency (CPM): 108
  • Load (Lbs) @80 PSI: 2560
  • Load (Lbs) @100 PSI: 3200
  • Design Height: 8"
  • Max Diameter: 9.8"
  • Max Height: 10.5"
  • Minimum Height: 3"
  • Top Plate Stud Quantity: 1
  • Bottom Plate Stud Quantity: 1

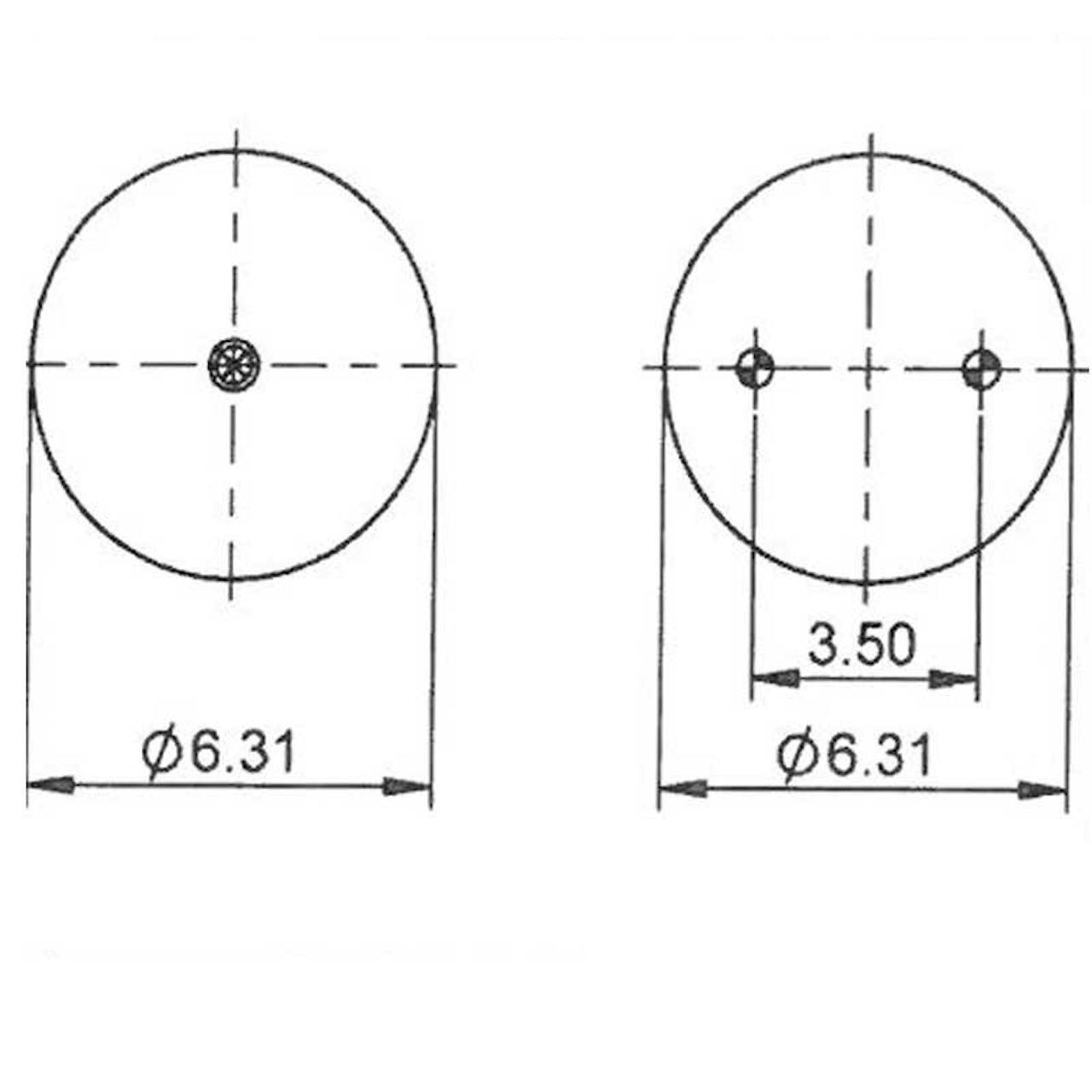

  • Top Plate Diameter (A): 6.31"
  • Bottom Plate Diameter (C): 3.5"
  • Bottom Plate Type: Plastic
  • Sold Individually
  • Quality Made Product

If you're looking to update your suspension with a quality made air spring, engineered to ensure safe driving regardless of the loading conditions, You've come to the right place. This double convoluted air spring also delivers ride comfort, especially when driving on rough roads. Made of high quality components for durability, reliability, and performance. Guaranteed free of defects and a long lasting service life.

Any mention of OEM names or OEM product ID numbers/descriptions/model numbers is intended for identification purposes only and does not indicate that it is an OEM part.

If you should need additional Truck Parts and Accessories, please don't hesitate to call our toll-free number 1-888-888-7990

Contitech 67705
Firestone 7795
Goodyear 2B10226
Goodyear 2B10-226
Hendrickson/Turner 3317
Hendrickson/Turner B14486
Hendrickson/Turner S14486
