  • Caterpillar Engine EZ Oil Drain Valve

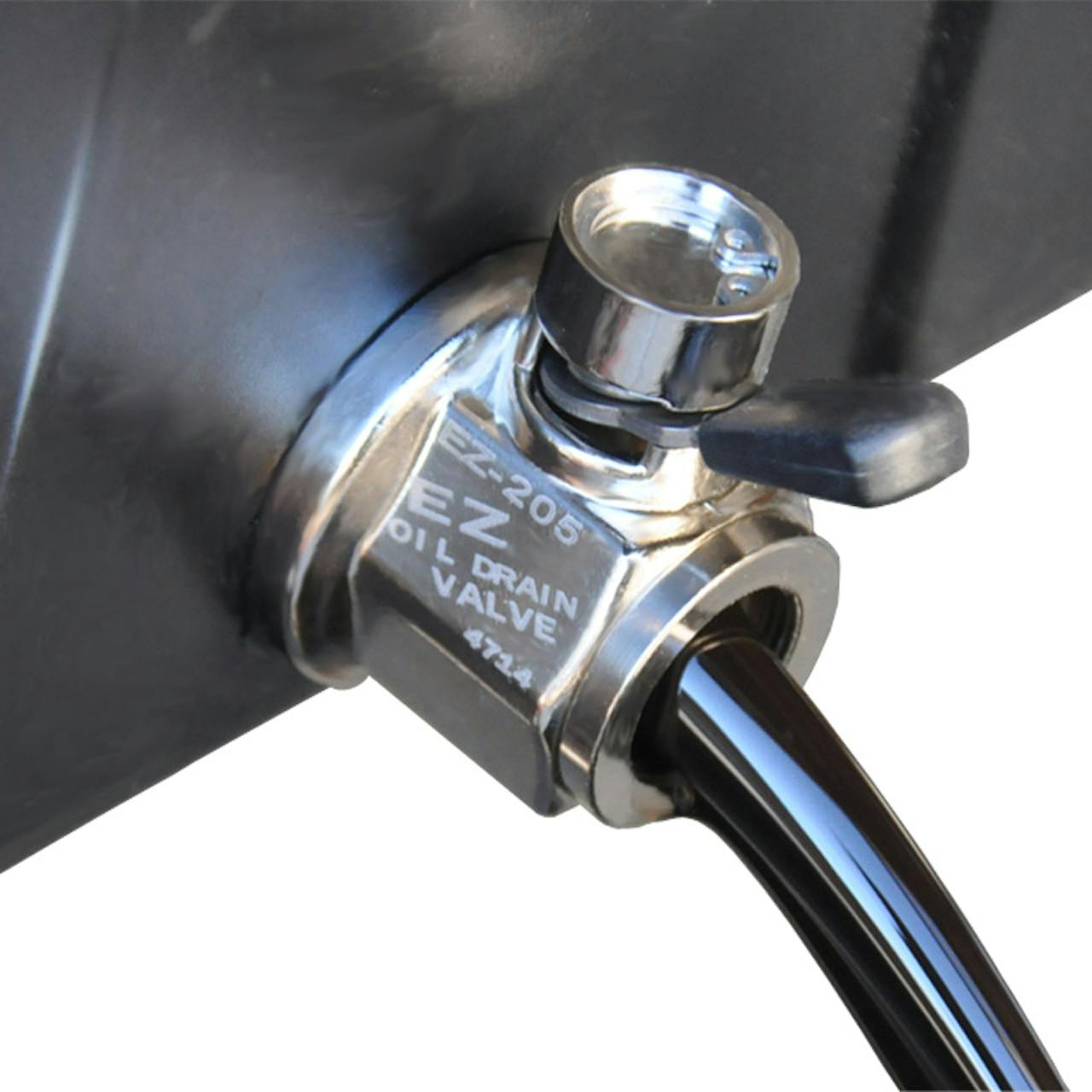

  • Caterpillar Engine EZ Oil Drain Valve Open

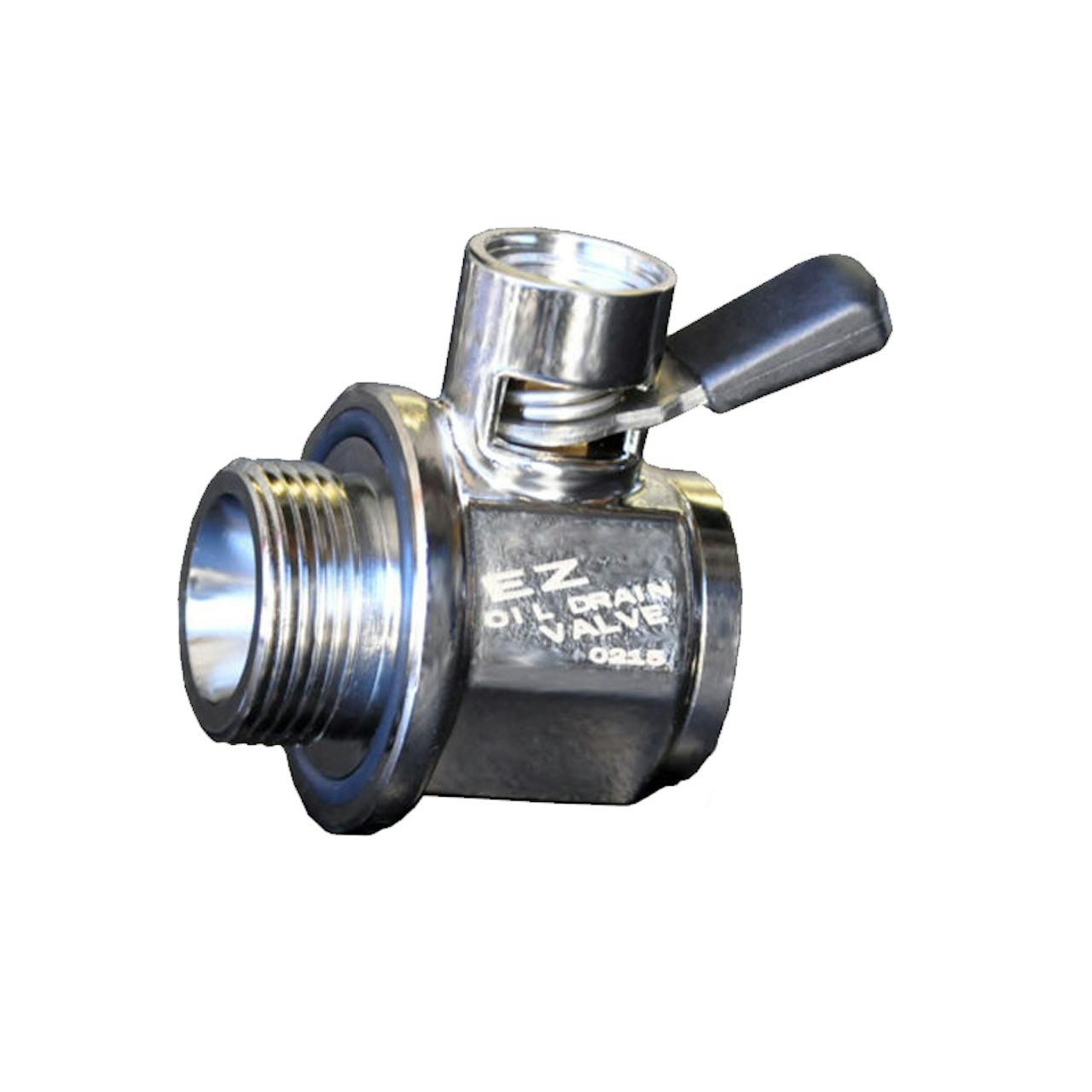

Caterpillar Engine EZ Oil Drain Valve

$48.95 $36.95
(You save $12.00)
Product #:
30159
Shipping:
Calculated at checkout
Quantity:

Product Description


Caterpillar Engine EZ Oil Drain Valve

  • EZ Oil Drain Valve
  • Fits Most Heavy Duty Caterpillar Engines (Choose Yours Above)
  • Nickel-Plated Body
  • Easy Installation and Operation
  • Tighten With a Small Wrench
  • Replaces Oil Pan Plug
  • Viton O-Ring Seal (Not Required For Some Valves)
  • Rated and Tested for Up to 250 PSI
  • Optional Hose Ends Are Available
    • 3116, 3126, C7, & C9 Engines With Bottom Drains: Click HERE for Straight Hose End, and HERE for 90 Degree Hose End
    • All Other Caterpillar Engines: Click HERE for Straight Hose End, and HERE for 90 Degree Hose End
  • Patent Pending
  • Sold Individually
  • Quality Made Product

Fitment Guide for Caterpillar Applications:

  • 3304, 3306, 3406, 3406B, 3406C, 3406E, 3408, 3412, 3456, 3176, 3126, C-10, C-11, C-12, C-13, C-15 Non-ACERT Model, C-16, C-18, C-30, ACERT Models With 1-5/16" Drain Plug, 3304 With NPT 1-12 Plug (1 1/4" Diameter), 3306 With NPT 1-12 Plug (1 1/4" Diameter), 3406 With NPT 1-12 Plug (1 1/4" Diameter), 3406B With NPT 1-12 Plug (1 1/4" Diameter), 3406C With NPT 1-12 Plug (1 1/4" Diameter), 3406E With NPT 1-12 Plug (1 1/4" Diameter), 3408 With NPT 1-12 Plug (1 1/4" Diameter), 3412 With NPT 1-12 Plug (1 1/4" Diameter), 3456 With NPT 1-12 Plug (1 1/4" Diameter), 3176 With NPT 1-12 Plug (1 1/4" Diameter), 3126 With NPT 1-12 Plug (1 1/4" Diameter), C-10 With NPT 1-12 Plug (1 1/4" Diameter), C-11 With NPT 1-12 Plug (1 1/4" Diameter), C-12 With NPT 1-12 Plug (1 1/4" Diameter), C-13 With NPT 1-12 Plug (1 1/4" Diameter), C-15 Non-ACERT Model With NPT 1-12 Plug (1 1/4" Diameter), C-16 With NPT 1-12 Plug (1 1/4" Diameter), C-18 With NPT 1-12 Plug (1 1/4" Diameter), C-30 With NPT 1-12 Plug (1 1/4" Diameter), ACERT Models With NPT 1-12 Plug (1 1/4" Diameter), 1100, 1140, 1145, 1150, 3054, 3056, 3100, 3208, 3126B, 3126E, C-6, C-6.6, 3116 With Side Drain, 3126 With Side Drain, C-7 With Side Drain, C-9 With Side Drain, 3116 With Bottom Drain, 3126 With Bottom Drain, C7 With Bottom Drain, and C9 With Bottom Drain.
  • Applicable Valves: EZ-205, EZ-215, EZ-200, EZ-204, & EZ-104

EZ Oil Drain Valves replace your oil drain plug, making your oil draining experience quick, easy, and clean. No more stripped threads, burned hands, or messy oil changes! EZ's unique ball valve design can withstand higher pressures and engine vibrations than standard spring-assisted gate valves, and its nickle-plated body ensures that it will outlast your motor. Additionally, oil sampling has never been easier with the EZ Oil Drain Valve, since it enables quick access without having to drain your entire oil pan. For even more flexibility, EZ offers separate Hose Attachments to drain you oil away from the motor.

If you should need additional Truck Parts and Accessories, please don't hesitate to call our toll-free number 1-888-888-7990

Q&A

Click on a question to view answer, or to follow a question for updates.

Product Videos

  • EZ Oil Drain Valve at Raney's
    EZ Oil Drain V...
    Shop for these at Raney's: http://www.raneystruckparts.com/sea...

Warranty Information

This Product has a Lifetime Warranty
