Atro Pivot Bushing Replacement with Shear Bolt GAFF13628

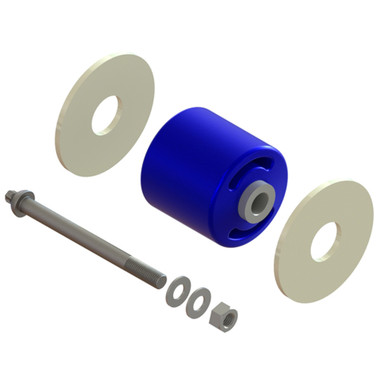

Atro Pivot Bushing Replacement with Shear Bolt

Atro's polyurethane is impervious to chemicals such as oil, grease, hydraulic fluids, and diesel. It's increased tensile and tear strength is 2 to 5 times stronger than rubber, and is engineered to absorb shock exceeding OE specifications, creating longer lasting products.

• Pivot Bushing and Shear Bolt
• Traditional Tri-Functional Design
• Voids Like the Standard Rubber Bushing
• Inner Sleeve is Bonded in Place
• Compatible with: Hendrickson Quick Align, Intraax, Vantraax, HT Series, HLM Series
• Includes:
• (1) Pivot Bushing
• (1) Shear Bolts
• (2) Washers
• (2) Shims
• Dimensions:
• Sleeve Length: 6 3/4"
• Bushing Width: 5 3/4"
• Inside Diameter: 1 1/4"
• Outside Diameter: 5 7/8"
• Bolt: 7/8"
• Cross Reference for:
• Automann: MHS736UB & MHS736
• Dayton Parts: 334-1576
• Euclid: E-10729A
• Flagg: HT245
• Gaff: GAFF13624, GAFF13510, GAFF13628
• Hendrickson Auxiliary Axle: S-24691
• Meritor: R3010729A
• Watson Chalin: 17993112
• Sold Individually
