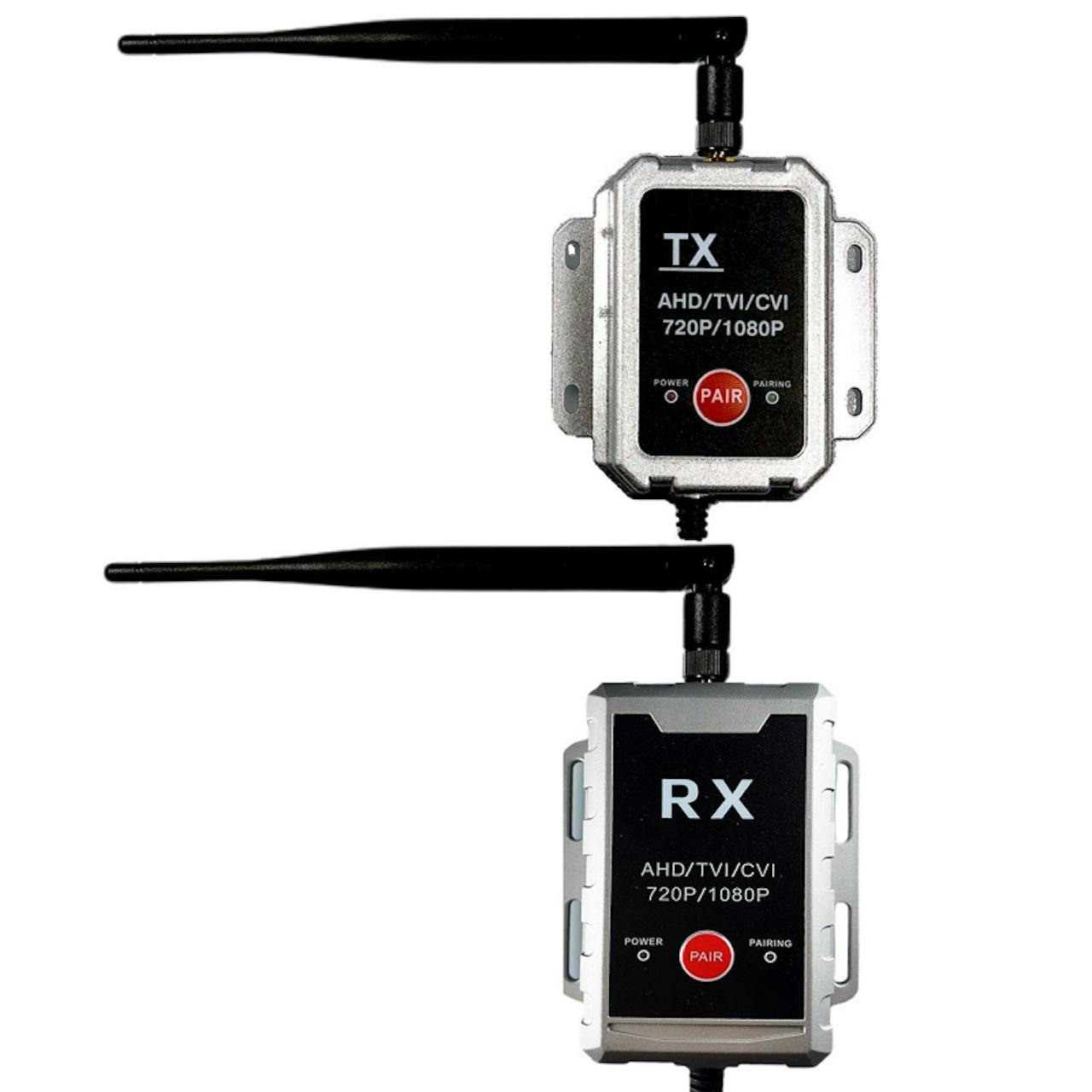

  • AHD Wireless Transmitter & Receiver For Wired Cameras

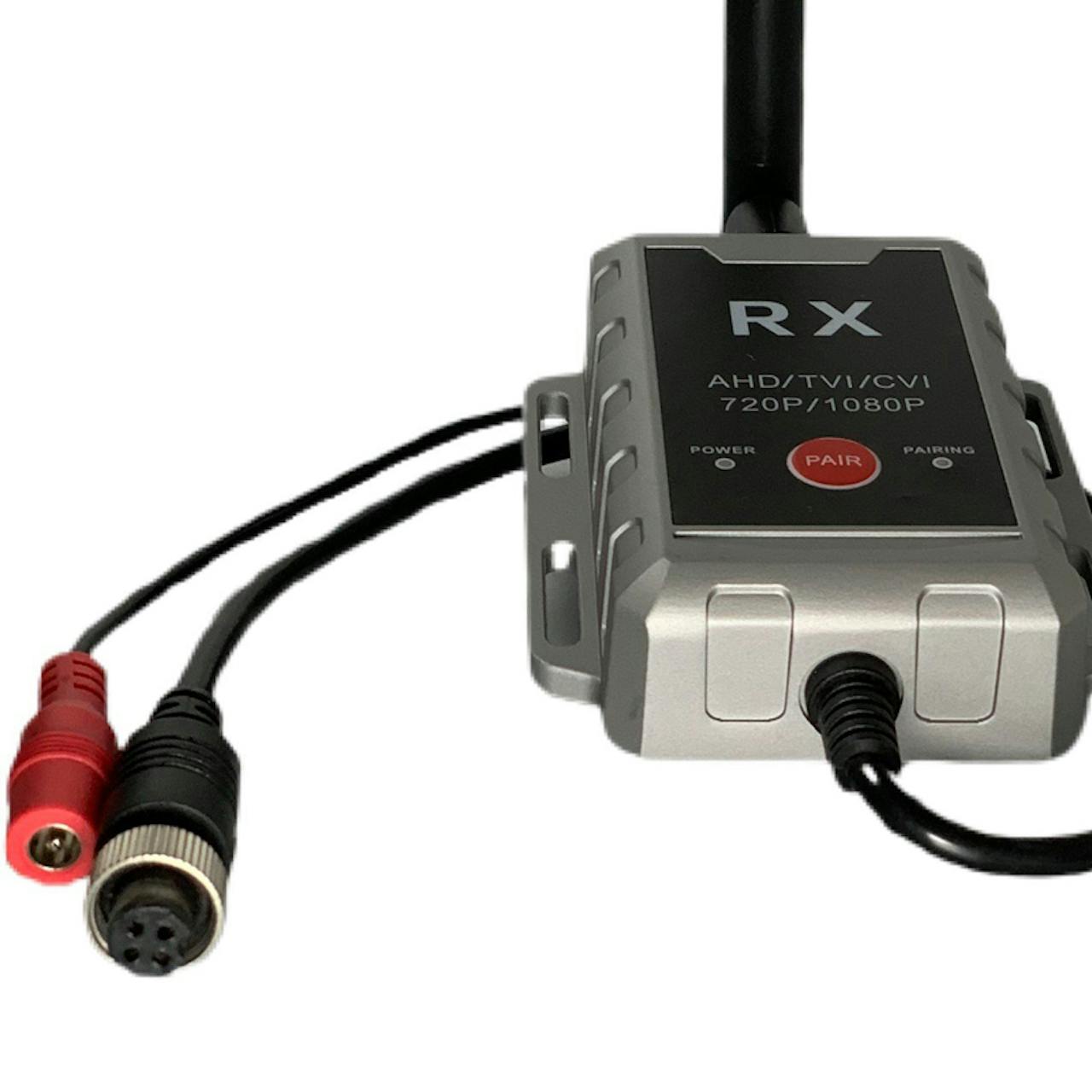

  • AHD Wireless Receiver For Wired Cameras

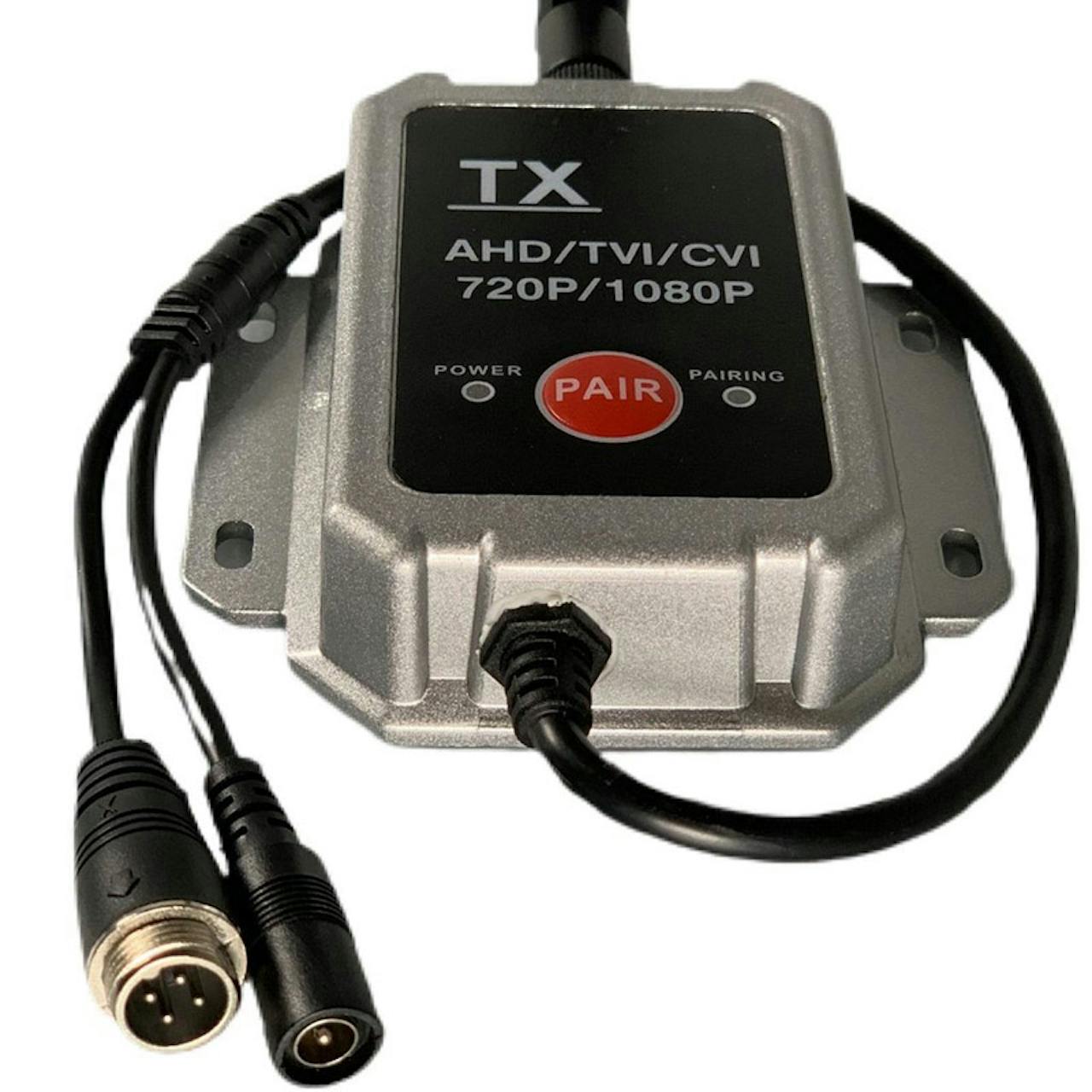

  • AHD Wireless Transmitter For Wired Cameras

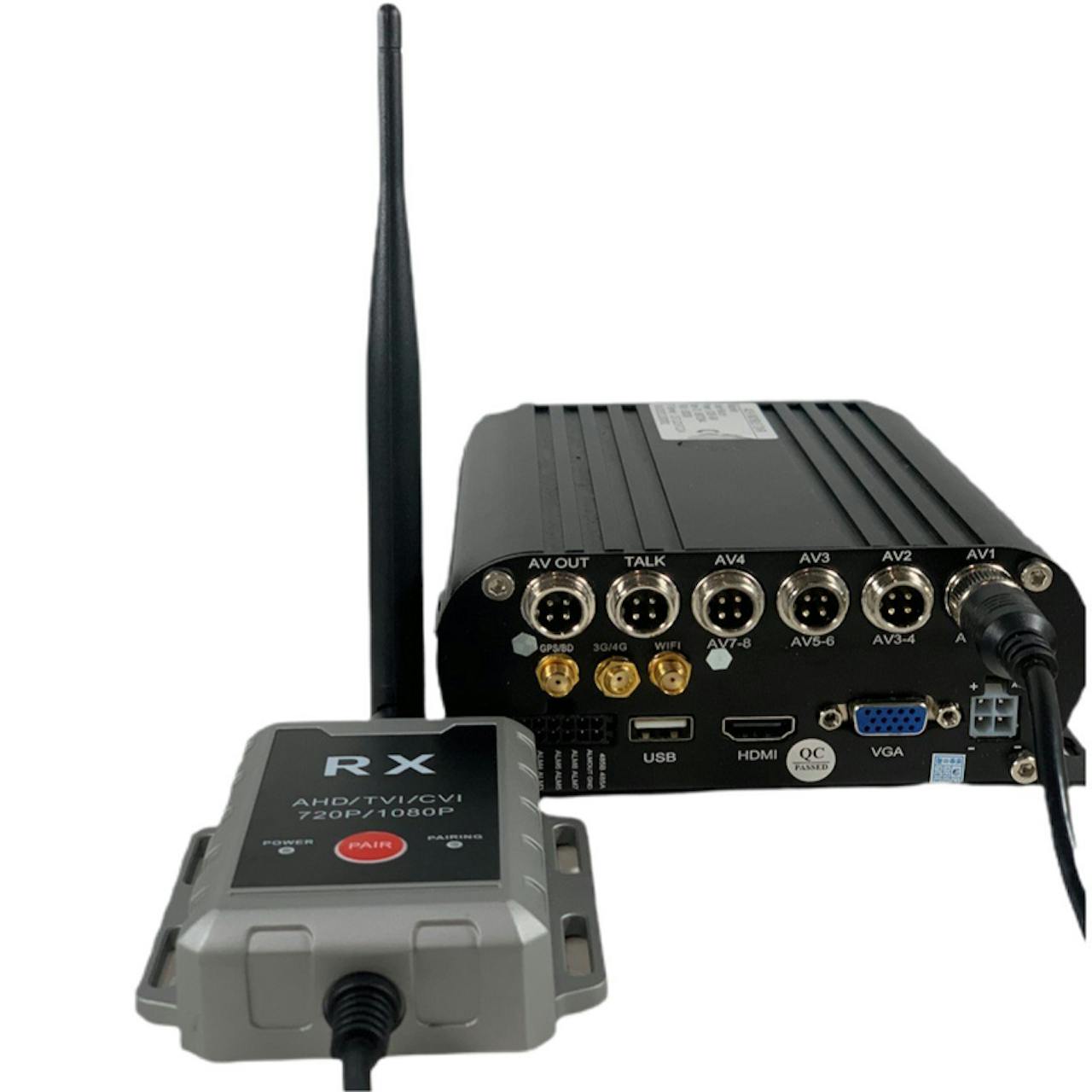

  • AHD Wireless Transmitter & Receiver For Wired Cameras (Receiver, Installed)

AHD WIFI Transmitter Receiver For Wired Cameras

Product #:
In Stock! Order now for your item to ship within 48 hours!
Calculated at checkout

Product Description

AHD WIFI Transmitter Receiver For Wired Cameras

Instantly convert your wired camera setup to a wireless one with this adapter kit from Top Dawg!

*This System Cannot Transmit Analog Signals

  • Top Dawg AHD Wireless Transmitter & Receiver For Wired Cameras
  • Hassle-Free Installation On Any Car, Trailer, Commercial Truck Or RV
  • Perfect For Installing Top Dawg Batteries, Cameras And LCD Systems Without Hardwiring Or Drilling
  • Can Transmit Any 720P, 1080P, AHD, HDCVI Or HDTVi Signal With A 600 ft. Range
  • Features A Reliable IP69K Waterproof And Weatherproof Design
  • Included:
    • (1) Wireless Receiver
    • (1) Wireless Transmitter
  • Specifications:
    • Working Voltage: DC12-36V
    • Working Range: 500 Meters
    • TX Consumption: 200ma/250ma Max
    • TX Channels: (1)
    • RX Consumption: 200ma
    • RF Band Width: 12 Mbps
    • Modulation: QPSK/16QAM
    • Hopping Rate: 1200/S
    • Latency: 100ms Max
    • Video Codec: H.264
    • T/R Frequency: 2400-2483.5Mhz
    • Output Power: 20dB
    • Receiving Sensitivity: -86dBm@ QPSK
    • TX Video In Signal Format: AHD/TVI/CVI/CVBS Auto Detection At 1080P/720P/480P
    • RX Video Output Signal Format: AHD/TVI/CVI/CVBS Auto detection At 720P
    • Video Output Impedance: 75Ω, Typ.
    • Video Output Level: 1Vp-p, Typ.
    • Audio Output Impedance: 200KΩ, Typ.
    • Audio Output Level: 5mv~0.2Vp-p, Typ.
    • S/N(340Hz ~ 3.4kHz): 63dB Min
    • THD: 5% Max
    • Waterproof: IP69K
    • Connector: 4-Pin Plug
    • Housing material: Aluminum Diecasting
    • Current consumption: 200mA/12V
    • Temperature Tolerances: -20° C ~ 80° C | 68° F ~ 176° F
    • Humidity Tolerance: <85% RH
  • Sold As A Kit
  • Quality Made Product
