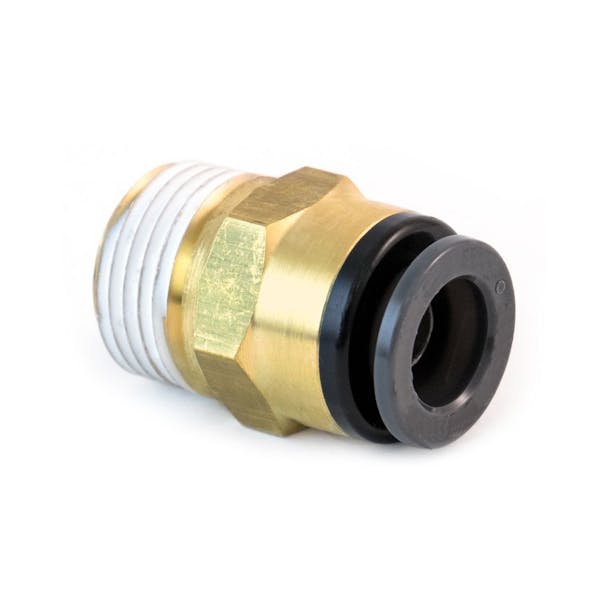

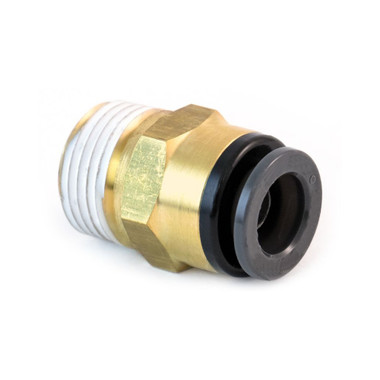

Composite Straight Male Connector Push To Connect 1/4" X 1/4" Fitting

Composite Straight Male Connector Push To Connect 1/4" X 1/4" Fitting

Secure and easy air brake connections with the 1/4" composite male connector. Fast push-to-connect design, 145 PSI rated, DOT and SAE compliant for reliable performance.

• Male Straight Connector Fitting
• Fits SAE J844 Tube Size: 1/4" Diameter
• Pipe Thread Size: 1/4" NPT
• Reusable Push To Connect Tool Free Assembly
• Body Material: Brass
• Max Working Pressure: 145 PSI
• Temperature Range: -40 To 140 Fahrenheit
• Resists Mechanical Pull Out
• Corrosion Resistant
• Meets DOT FMVSS 571.106 And SAE J1131, J2494-1, J2494-3 Standards
• Sold Individually

The 1/4" x 1/4" Composite Straight Male Connector is designed for fast, secure connections in air brake systems and in-cab controls using SAE J844 nylon tubing. With a durable push-to-connect design, it allows quick assembly and repeated use without compromising performance. Made from lightweight, high-strength composite, it offers reliable sealing, resists mechanical pull-out, and operates at pressures up to 145 PSI and temperatures from -40°F to 140°F. Fully compliant with DOT FMVSS 571.106 and SAE J1131, J2494-1, and J2494-3 standards, this fitting ensures safe, long-lasting performance in demanding conditions.
