19.5" x 6" Alcoa Aluminum Hub Piloted Wheel

TL6.619,33

SKU:
26664
Shipping:
Calculated at Checkout

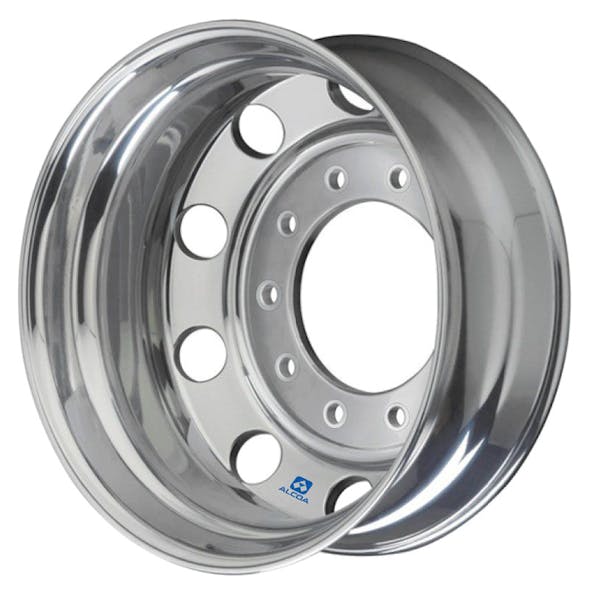

  • 19.5" x 6" Alcoa Aluminum Hub Piloted Wheel - Front

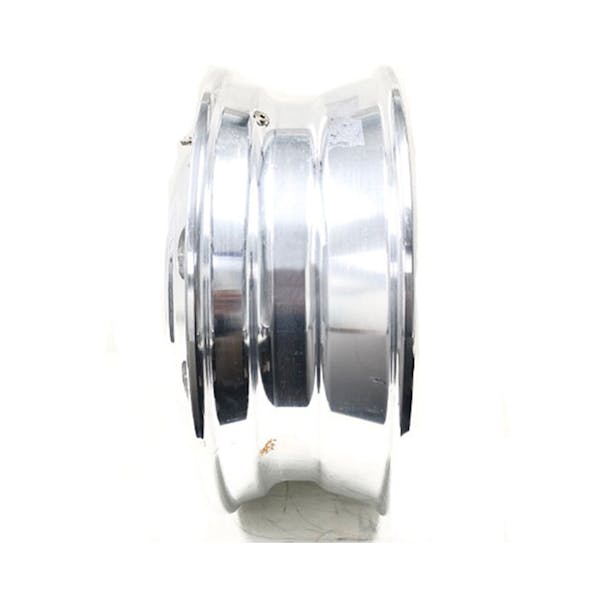

  • 19.5" x 6" Alcoa Aluminum Hub Piloted Wheel - Side
  • 19.5" x 6" Alcoa Aluminum Hub Piloted Wheel - Close-Up
  • 19.5" x 6" Alcoa Aluminum Hub Piloted Wheel - Example 1
  • 19.5" x 6" Alcoa Aluminum Hub Piloted Wheel - Example 2
  • 19.5" x 6" Alcoa Aluminum Hub Piloted Wheel - Example 3
Frequently bought together:
  • Description


    19.5" x 6" Alcoa Aluminum Hub Piloted Wheel

    *Image For Reference Only

    • High Quality Aluminum Hub Piloted Wheel
    • 763291, 763292 And 763292DB 19.5" x 6" Truck Wheel (26 Lbs.)
    • Features Dura-Bright: An Advanced Durable Easy-Maintenance No-Polish Surface Treatment!
    • Mounting System: Hub Pilot
    • Bolt Holes: 10
    • Bolt Circle: 225mm
    • Bolt Hole Diameter: 15mm
    • Hub Bore: 170.2mm
    • Outset: 5.35"
    • Inset: 4.82"
    • Max Load: 4000 Lbs.
    • Max Cold Inflation: 130 PSI
    • Valve Stem: TR553C
    • Sold Individually
    • High Quality 100% North American Made Product

    Raney's will not accept returns for wheels that have been mounted and/or installed. If you are unsure of the correct wheel configuration to purchase, please check prior to installation or give us a call at 888-888-7990.

    If you should need additional Truck Parts and Accessories, please don't hesitate to call our toll-free number 1-888-888-7990

  • Warranty Information
    This limited warranty applies to new Alcoa® Wheels, including forged aluminum wheels for medium duty and heavy duty trucks, truck trailers, bus, RV or motor home wheels (“Wheels”) and the surface or rim flange treatments applied to the Wheels. “Transit Wheels” means Wheels used on transit vehicles, such as buses and vans, whose primary purpose is to transport people. The warranties set forth in this document apply to all Alcoa® Wheels manufactured by Arconic and sold by Arconic or its authorized distributor to an original purchaser of the Wheel or their end user. Arconic warrants that the Wheel is free from defects in material and workmanship for the applicable time period set forth below: (a) Except as stated in (b) of this section, Wheels are warranted for 60 months from the date of manufacture as shown on the Wheel. (b) Transit Wheels and RV and motor home Wheels are warranted for 120 months from the date of manufacture as shown on the Wheel. Arconic agrees, without charge, to repair or replace a Wheel that fails in normal use or service (see the qualifications section below) because of defects in material and workmanship. Arconic warrants the Dura-Flange® rim flange treatment against wear which creates a sharp edge that would require maintenance for 24 months from the date of manufacture as shown on the Wheel. Arconic warrants the Dura-Bright® surface treatment against: (i) filiform corrosion (worm or hair like lines, generally milky in appearance, underneath surface protective treatment and emanating from damage to the surface treatment such as nicks, scratches or damage from mounting hardware or wheel weights); (ii) blistering or peeling due to loss of adhesion of the surface treatment; and (iii) lift off of the surface treatment due to physical damage (nicks, scratches, gouges). The foregoing Dura-Bright® surface treatment warranty is for the applicable period of time set forth below: (a) Except as stated in (b) of this section, Dura-Bright® surface treatment on Wheels is warranted for 60 months from the date of manufacture as shown on the Wheel. (b) Dura-Bright® surface treatment for RV and motor home Wheels is warranted for 120 months from the date of manufacture as shown on the Wheel. If the Dura-Flange® rim flange treatment or Dura-Bright® surface treatment fail in normal use or service (see the qualifications section below) to meet the foregoing warranties on a Wheel, Arconic agrees, without charge, to replace the Wheel.
