Minimizer Lift Axle Bracket For Hendrickson EXS13 with Bolt-On Cam-Tube
Learn more
- SKU:
- MNZ10001455
- Condition:
- New
- Shipping:
- Calculated at Checkout
Description
Minimizer Lift Axle Bracket For Hendrickson EXS13 with Bolt-On Cam-Tube
*Not Compatible with Disc Brakes
*Does Not Fit EXS13 Axles with Fewer than 3 Dust Shield Mounting Holes
*Does Not Fit EXS08 Axles

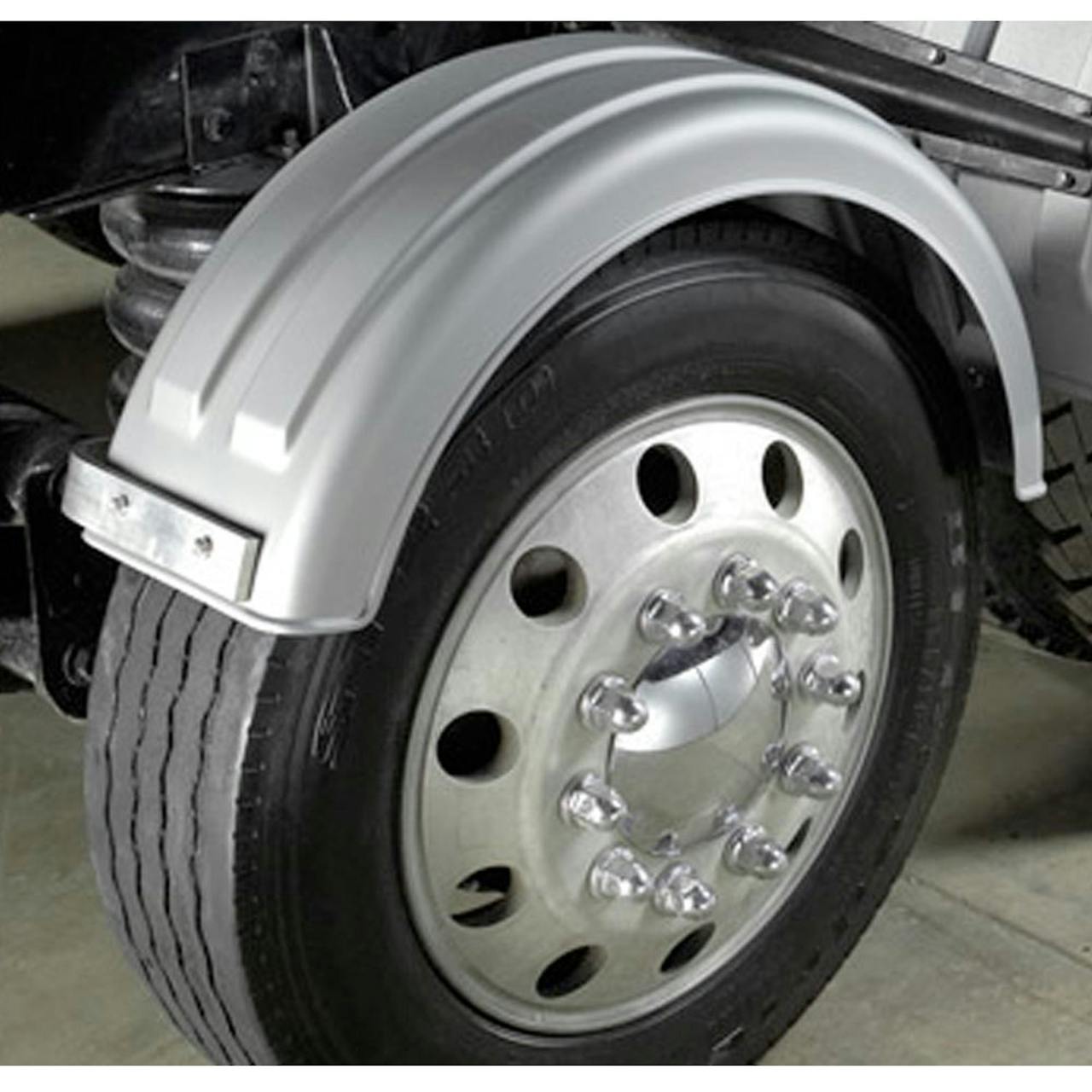

*Fender image is for Reference Only. Fender is Not Included.
Ensure a secure fender mount with the Minimizer Lift Axle Bracket Kit for Hendrickson EXS13 axles with a bolt-on cam-tube. Built for strength and reliability. Order now!
- Steerable Lift Axle Bracket for Fenders
- Compatible with Hendrickson EXS13 with Bolt-On Cam-Tube Flange
- Must Have (3) Dust Shield Mounting Holes on Cast Backbone Assembly
- Fits Drum Brakes Only
- Axle Capacity: 10K-13K Lbs (Model Specific)
- Compatible with Select Minimizer Fenders:
- MIN161200 (Fits Tire Sizes up to a 255)
- MIN221800 (Fits Tire Sizes of 255 - 385)
- Camshaft Tube Position: 10:00 O'Clock
- For Bolted Brake Camshaft Tube
- To Verify Fitment (See 3rd Image):
- Determine Pattern of Cam Tube Mounting Bolts
- Determine Center-to-Center Bolt Spacing Measurements
- Sold As a Kit
The Minimizer Lift Axle Bracket Kit is designed for Hendrickson EXS13 axles with a bolt-on cam-tube flange, providing a secure and reliable fender mounting solution. It is essential that the axle has three dust shield mounting holes on the cast backbone assembly for proper fitment. Built for drum brakes, this kit fits axle capacities from 10K to 13K lbs. It features a 10:00 O’clock camshaft tube position and is compatible with select Minimizer fenders, ensuring a precise fit and lasting durability. Verify fitment by checking the cam tube mounting bolt pattern and center-to-center bolt spacing.
If you should need additional Truck Parts and Accessories, please don't hesitate to call our toll-free number 1-888-888-7990
Warranty Information
Standard Fender Products Warranty
Minimizer Steerable Axle brackets are designed for use only with Minimizer poly fenders. Bracket Warranty is void if attached to a fender that is not Minimizer brand.
A.1 MINIMIZER warrants that, as long as the products remain on the original vehicle, and are owned by the original purchaser of the MINIMIZER product, for the useful life of the Minimizer Fender (i) all polyethylene components will be free from defects in material and workmanship, including free from rust and corrosion; and (ii) the standard four set primary colors described in the catalogue, and on the web site, will be free from all color shifts.
A.2 MINIMIZER warrants that paint film used on standard fender products will be free from defects in material and workmanship, subject to the exclusions below, for three (3) year after date of purchase.
A.2.1 Warranty is void if the paint itself is defective.
A.2.2 Any specialty products or colors are not warranted for color shifts.
A.2.3 Warranty for standard four-set primary colors includes peeling, chipping and fading. In no event will the warranty apply to films altered by outside forces. Contact with trailers, other debris or simple accidents void the warranty, and will be the sole responsibility of owner to repair at their cost.
A.3 MINIMIZER warrants that, as long as the products remain on the original vehicle, and are owned by the original purchaser of the MINIMIZER product, Minimizer Fender products will be free from stress cracks, dents and tears under normal operating conditions for the useful life of the product. If the condition is caused by non-normal operating conditions such as a motor vehicle accident, the warranty is inapplicable.
A.4 Minimizer molded tail light sections, provided with some fender products, are water resistant, but are not WATERPROOF. Attachment of the mud flaps, regardless of whether they are DOT-regulated, directly to the bottom of the light box fender will void any and all applicable warranty. MINIMIZER will not be held responsible for damages caused by mud flaps or mud flap installation.
A.5 Any Minimizer Fender product not mounted with Minimizer mounting hardware will void all warranties.
