Foldable Power Monocrystalline Solar Panels

Foldable Power Monocrystalline Solar Panels

Introducing the portable solar kit for trucks, RVs, boats, toy haulers, vans or any outdoor activity.

• Constructed With High Quality Material And Advanced Monocrystalline Solar Cells For Efficient Energy Harvest
• Built In Solar Charge Controller 6 Ft. Cable
• Works With Big Rigs, RVs, Boats, Bus, Vans, Utilities, Golf Carts And More!
• Portable And Easily Adjusts To The Optimum Sunlight Angle
• 130W Includes Adjustable Legs For Optimal Sun Angle
• Accordion Style Fold Up Case
• Weather Resistant
• Appropriate For Outdoor Use
• Durable And Rugged Case With Convenient Side Zipper Pocket To Store Wires And Charge Controller
• Lightweight And Super Thin Allowing For Easy Storage And Set Up
• Bypass Diode Minimizes The Power Drop When Shaded
• Modules Are Independently Tested To Ensure Conformance With Certification And Regulatory Standards
• Manufacturing Facility Certified To ISO 9001 Quality Management System Standards
• Panels Capable Of +/- 3% Power Efficiency Than Rated
• 5 Year Warranty, 10 Year 80% Output

Specifications:

• High Performance: Light Transmittance Up To 93%
• Cell Efficiency: 22.3% (One Of The Highest)
• Module Efficiency: 19.2% (19.6 120W) (One Of The Highest)
• Maximum Power: 60W or 130W Depending On Model
• Tolerance Wattage (e.g. +/- 5%): +/- 5%
• Maximum System Voltage: 600V DC (UL)
• Optimum Operating Voltage (Vmp): 19.8 V Or 22 V
• Optimum Operating Current (Imp): 3 A or 5.5 A
• Open-Circuit Voltage (Voc): 23.7 V or 26.4V
• Short-Circuit Current (Isc): 3.6 A or 5.9A
• Power Tolerance: 0=+3W
• Maximum Fuse Rating: 10 A
• Fire Safety Class: Class A
• Junction Box: IP 67 rated
• Temperature Range: -40⁰F to 185⁰F
• Bendable degree 30⁰ to 60⁰ (3⁰ to 90⁰ 120W)
• Number Of cells: 2 x 4 x 5 or 2 x 4 x 3
• Charge Controller PV Wire: 10 AWG With Spade Connect Easily Connects To Various Charge Controllers

Temperature Coefficients ⁰C:

• ISC(%): +2.6
• Voc(%): -50.6
• Prm(%): -.38
• Im(%): +2.2
• Vm(%): -60.8
• Dimensions:
• 60 Watt: Expanded 33" X 15.8" X 0.20" Folded 11.22" x 15.85" x .6"
• 130 Watt: Expanded 20.6" X 55.9" X 0.19" Folded 20.6" x 11" x 1"
• Certifications: CE, ETL, TUV And RoHS

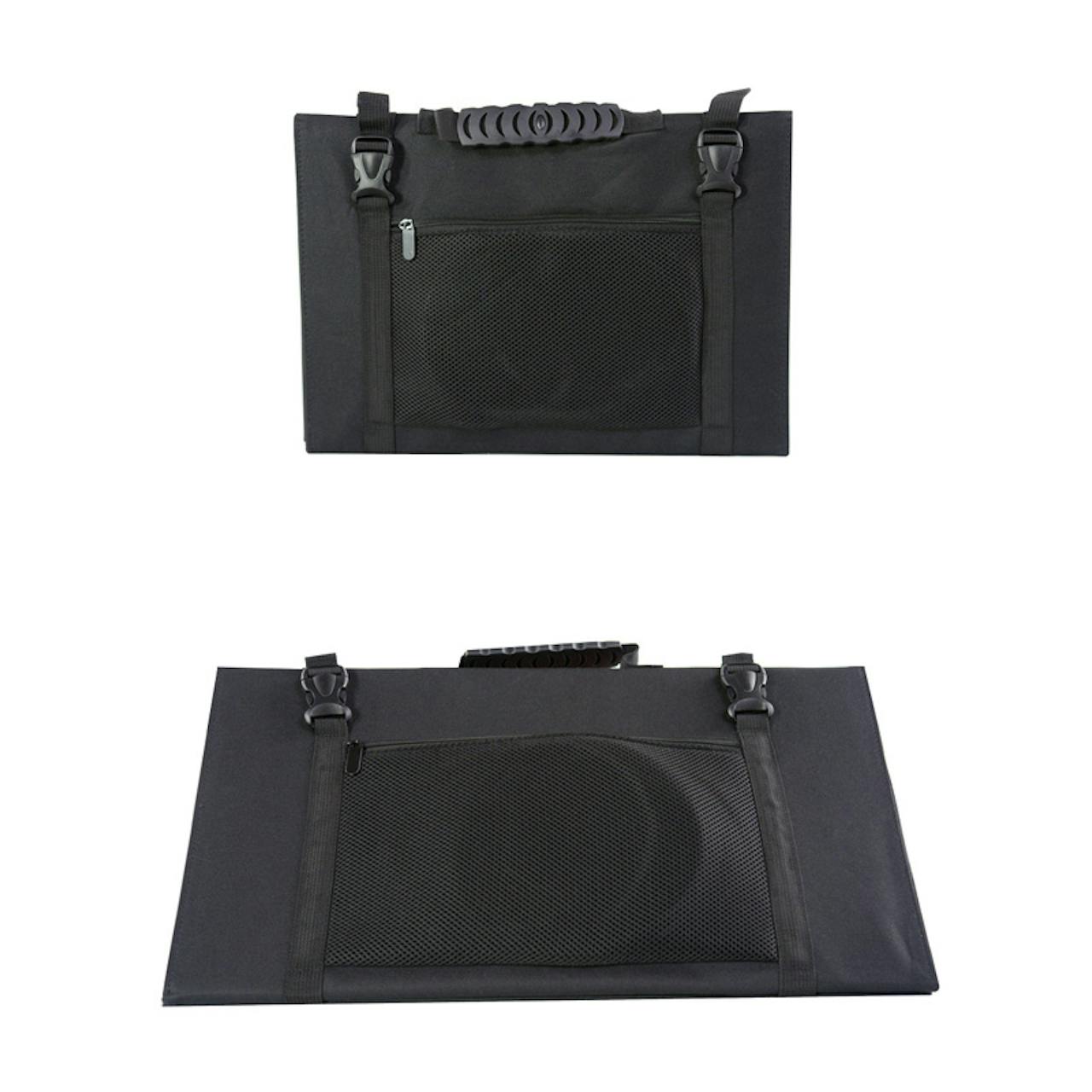

Case:

• Water Resistant
• Durable Rubber Handle
• Easy Side Slide Buckles
• Convenient Size Zipper Pocket For Wires And Charge Controller Storage
• Sold Individually Or As A Kit (Choose Above)
• Quality Made Product
