Digital Wireless Heavy Duty Bracket Backup Camera With 7" LCD
*Photographs Show Base Package, System Functions With Up To (4) Cameras

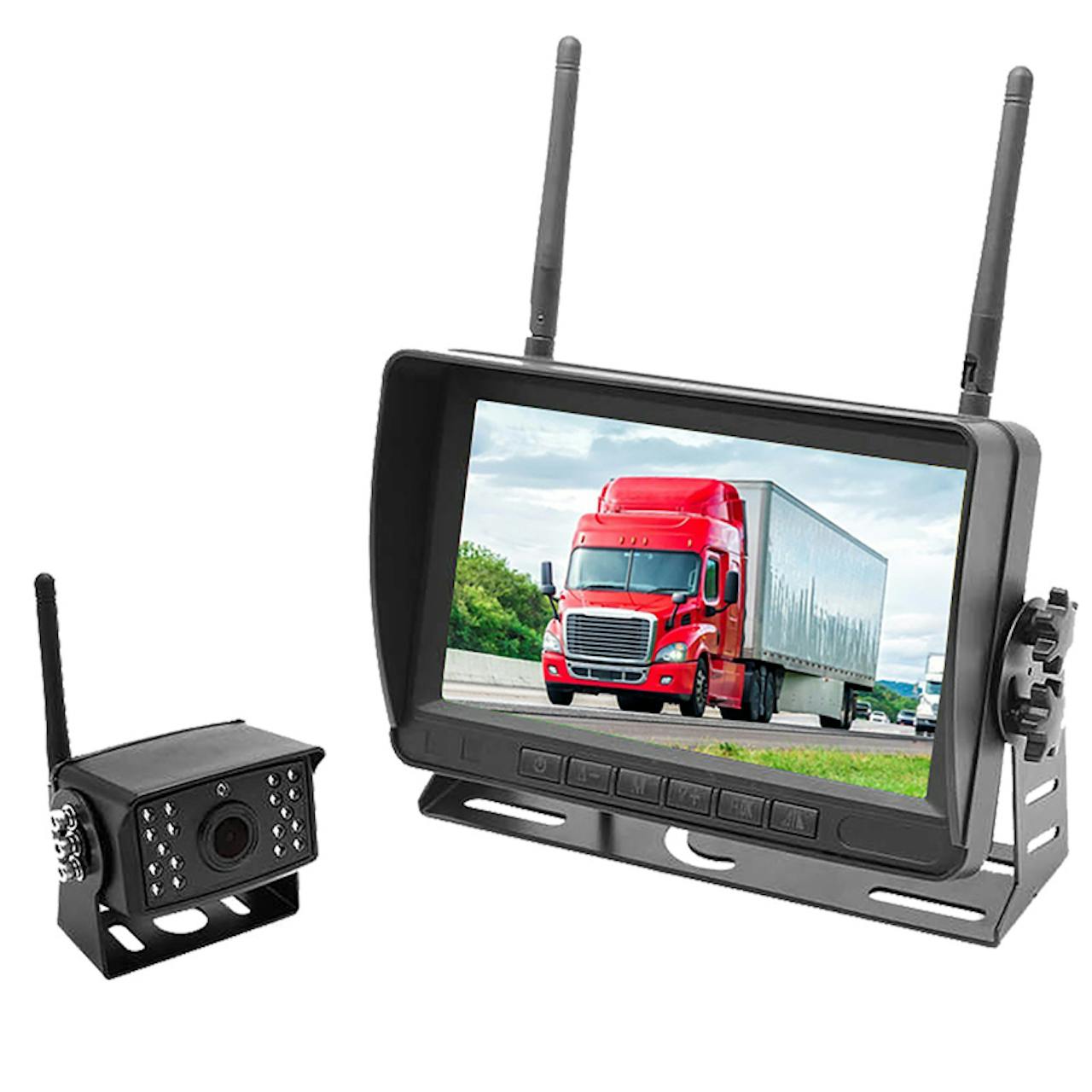

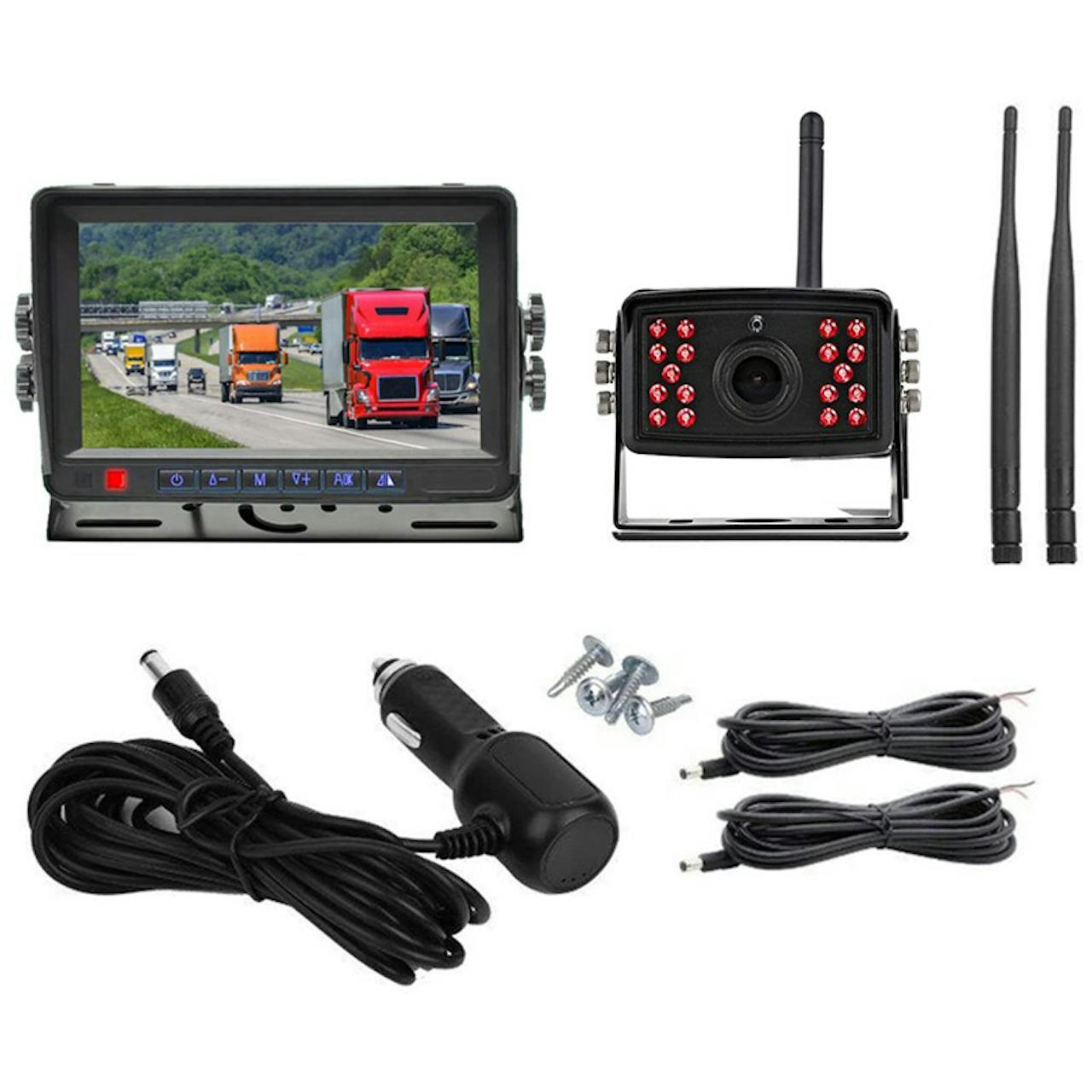

- Top Dawg Digital Wireless Heavy Duty Backup Camera & Monitor

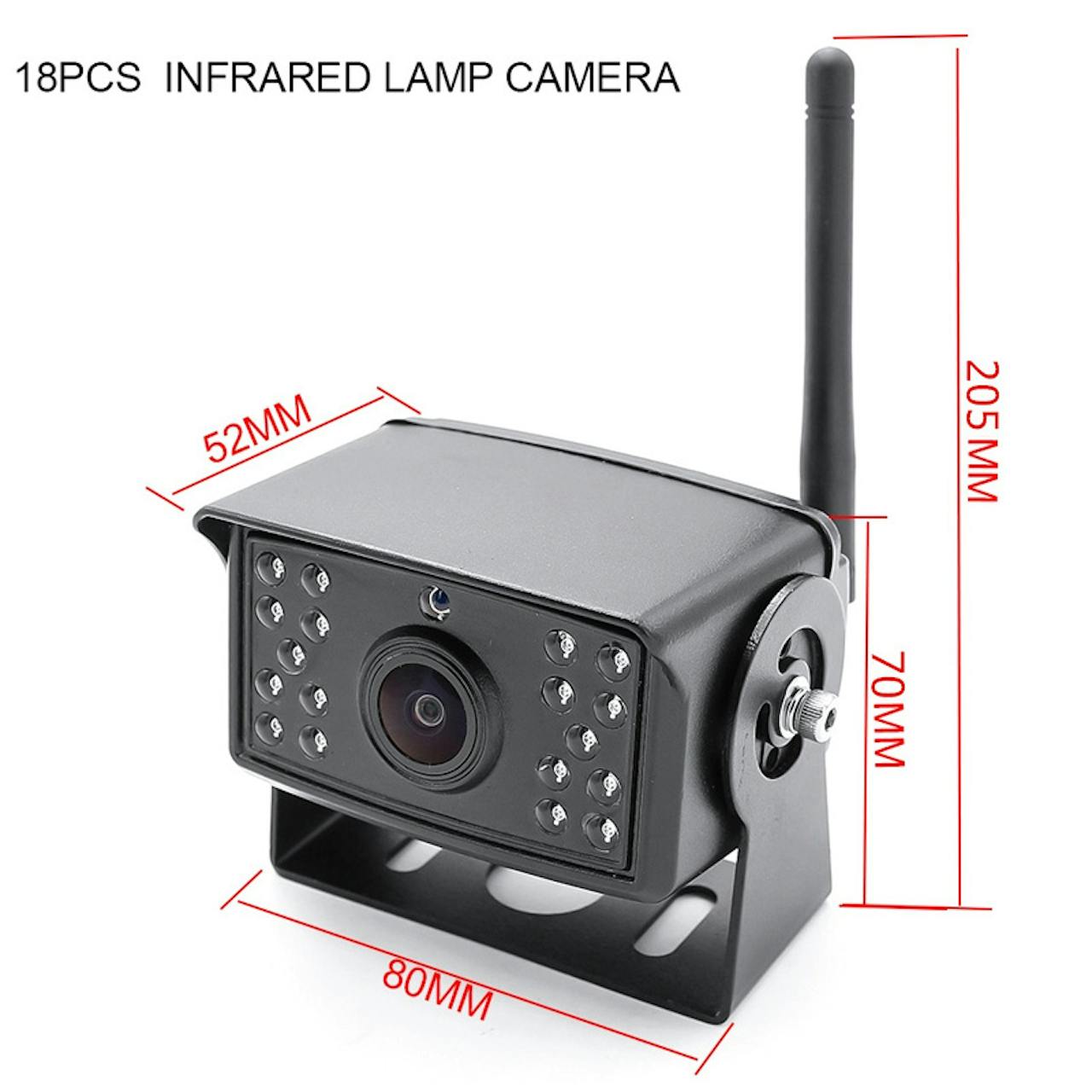

- (1) Digital Wireless IP68 CCD Camera
- (1) 7" TFT-LCD Monitor With Built-In Receiver & RCA A/V Output
- Up To (3) Extra Cameras (Choose Option Above)
- (1) Cigarette Lighter Power Adapter
- (1) Additional 12V Power Cable (For Hardwiring Monitor If Desired)
- (1) Dash Mount For LCD Screen
- Installation Hardware (Video Cable, Screws, Manual & Connectors)
- CCD Imaging Sensor (2 Million Pixels, 800 TV Lines; Equivalent To 720P)
- Minimum Illumination: 0 Lux (Total Darkness)
- Shockproof: 10G
- Waterproof: IP69
- ISM Digital Transmission (18MHz Bandwidth; 10mW/CE; 2mW/FCC)
- FM-Type Modulation
- Power Supply: +12V Or 24V DC
- Wireless Connection Range: 200 ~ 300 ft.
- Effective Camera Range: 200 ~ 300 ft.
- Camera Night Vision: 20 ~ 40 ft.
- Horizontal Field Of View: 120°
- Dimensions: 3.75" (W) x 2" (D) x 2.5" (H)
- Temperature Tolerances: -34° ~ 65° C | -30° ~ 150° F
- Humidity Tolerance: <85% RH
- Sold Individually
- Quality Made Product
