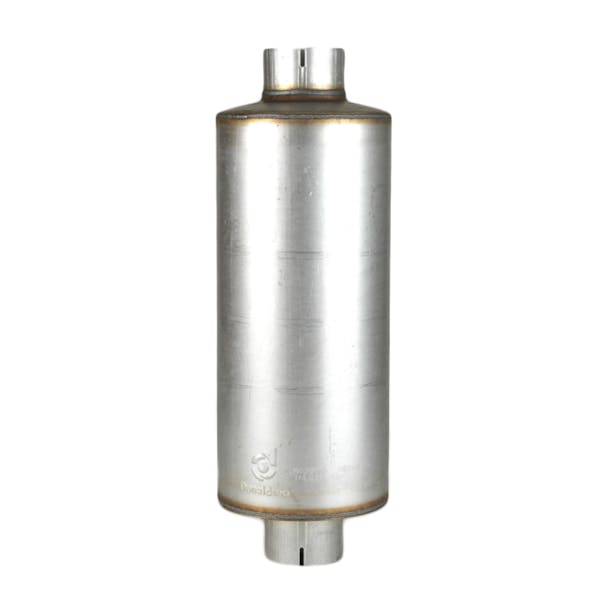

9" Muffler by Donaldson DNM090594 9575M090594 DCM090594
9" Muffler by Donaldson 211197 DNM090594 9575M090594 DCM090594
*Please Verify OEM Number Before Purchase
- Heavy Duty Muffler
- Cross Reference Numbers:
- Walker 21171
- Nelson 86560M
- TruckEx 3888
- Inlet Diameter: 4.02"
- Outlet Diameter: 4.02"
- Body Diameter Maximum: 9.02"
- Body Length: 19.75"
- Overall Length: 26.5"
- Rated Flow (LR): 961 cfm
- Rated Flow (MR): 1006 cfm
- Rated Flow (HR): 1667 cfm
- Back Pressure (Low-Range): 0.98" Hg
- Back Pressure (Mid-Range): 2.01" Hg
- Back Pressure (High-Range): 2.99" Hg
- Attenuation (LR): 10 dBA
- Attenuation (HR): 15 dBA
- Style: 1
- Sold Individually
- Quality Made Product
Direct Aftermarket Replacement For OEM #s: 3888, 3888, AU103151, 131204, NM090594, 1243122H1, 4013311000, 3114112501, 4013311000, 413311, DCM090594, 1243122H1, B253311, 1432461H1, 87400594, 87400594Q, 348027, 9575M090594, 1511657, DNM090594, 124312241, 1243122H1, 86983714, 7642000093, 31252, HD414, 140760801, M14958, DCM090594, 1243122H1, 1432461H1, 2191M090594, 7642000093, 29323061, 86560M, 18421, 70930, 91910, 90910, XD414, 1909316, 2250186513, 3888, 22572
As one of the largest providers of unique filtration technologies and high-quality filters and parts, Donaldson has been solving customers' complex filtration needs for over 100 years. With durable, rugged filters that are built for the long haul, Donaldson offers the most comprehensive line of replacement filters that are manufactured to the same quality standards as the original!
Any mention of OEM names or OEM product ID numbers/descriptions/model numbers is intended for identification purposes only and does not indicate that it is an OEM part.
If you should need additional Truck Parts and Accessories, please don't hesitate to call our toll-free number 1-888-888-7990
Vendor's General Warranty Policy
The vendor warrants all new products against defective material or workmanship for (4) years from in-service date or 500,000 miles.
