435A Swivel Drawbar Eye Front End Housing by Premier Manufacturing


Order Now, Pay Later with Affirm Logo Learn more
Calculated at Checkout
Ships out in 1-2 weeks
Calculated at Checkout
Frequently bought together:


435A Swivel Drawbar Eye Front End Housing by Premier Manufacturing

Premier: setting the industry's highest quality and safety standards in tractor-trailer components since 1924!

*The 435A Front End Housing Was Designed For Use With 207S, 307S, 405S or 410S Swivel Drawbar Eyes Only

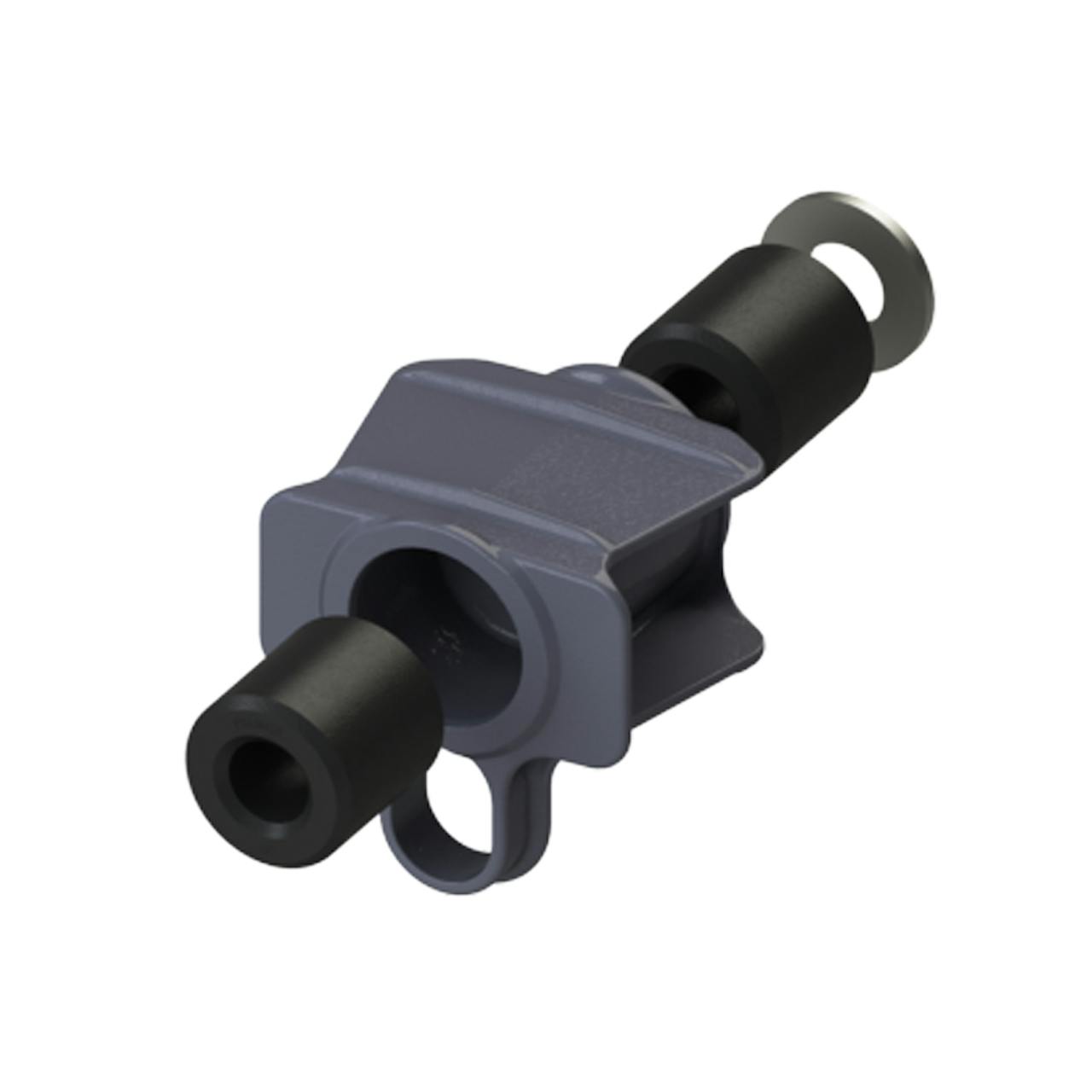

  • 435A Swivel Drawbar Eye Front End Housing
  • Perfect For A Variety Of Mid-Duty Applications
  • Accepts 2" x 4" (51mm x 102mm) Rectangular Tubing Or Standard Channel
  • Undergone Extensive Design And Quality Testing
  • Built To Provide The Longest Life Service On The Market
  • Includes: Housing, Washer And (2) Poly Bushings

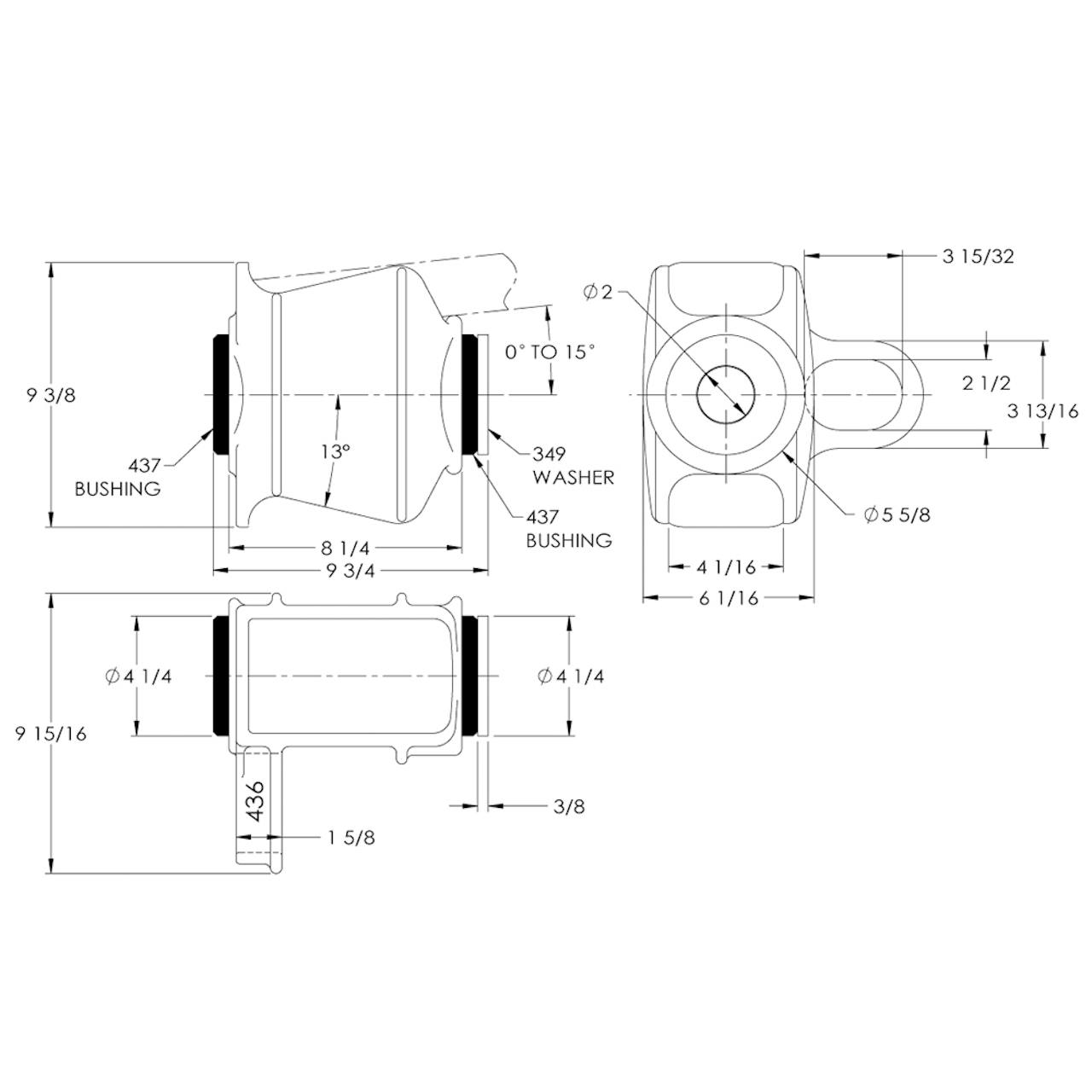

  • Weight Specifications & Dimensions:
    • Inside Diameter: 2 in. (51 mm)
    • Outside Diameter: 4 1/4 in. (108 mm)
    • Length: 4 1/2 in. (114 mm)
    • Unit Weight: 36.7 lbs. (16.6 kg)
  • Both SAE J847 & SAE J849 Compliant
  • Proudly Made In The USA
  • Sold As A Kit
  • Quality American-Made Product

Introducing Premier's heavy-duty pintle hitches! Made right here in the USA, Premier Manufacturing's couplers have undergone extensive design and testing to meet SAE requirements and provide a reliably long service life. Trailer safety has always been their #1 priority! Using the latest in design software, all of Premier's couplings and accessories are guaranteed to last longer and hold faster than industry standards. These pintle hooks are designed to be more driver friendly, cost effective and carry higher capacity ratings than cut-rate substitutes.

If you should need additional truck parts and accessories, please don't hesitate to call our toll-free number 1-888-888-7990!

View AllClose

Warranty Information

We warrant all Premier products to be free from defects in material or workmanship for one year. We will repair or replace, at our option, any Premier product which our examination reveals to be defective, provided that the product is returned to our factory in Tualatin, Oregon, transportation prepaid, within one year of purchase by the first retail purchaser. Our warranty does not extend to products which have been subject to misuse, neglect, improper installation, maintenance or application, nor does our warranty extend to products which have been repaired or altered outside of Premier’s facility unless the repair or alteration has been expressly authorized in writing by Premier. This warranty is in lieu of all other warranties, express or implied, and excludes warranties of merchantability, fitness for a particular purpose and otherwise, and in no event will Premier be liable for incidental, special, contingent or consequential damages.
